Board Feeding
Corrugated board is fed into the machine with proper alignment for continuous processing.
Slitting Heads
4 Sets
Scoring Dies
6 Sets
Paper Width
1400–2500 mm
Grinding System
Auto / Manual
Machine Type
Lifting Type
Shaft System
3 Shaft Design

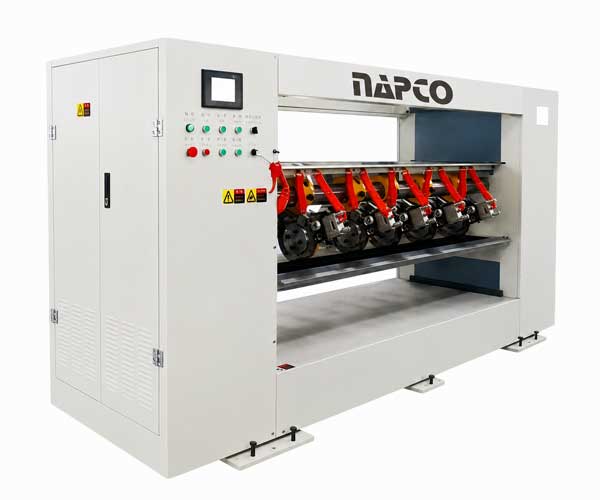

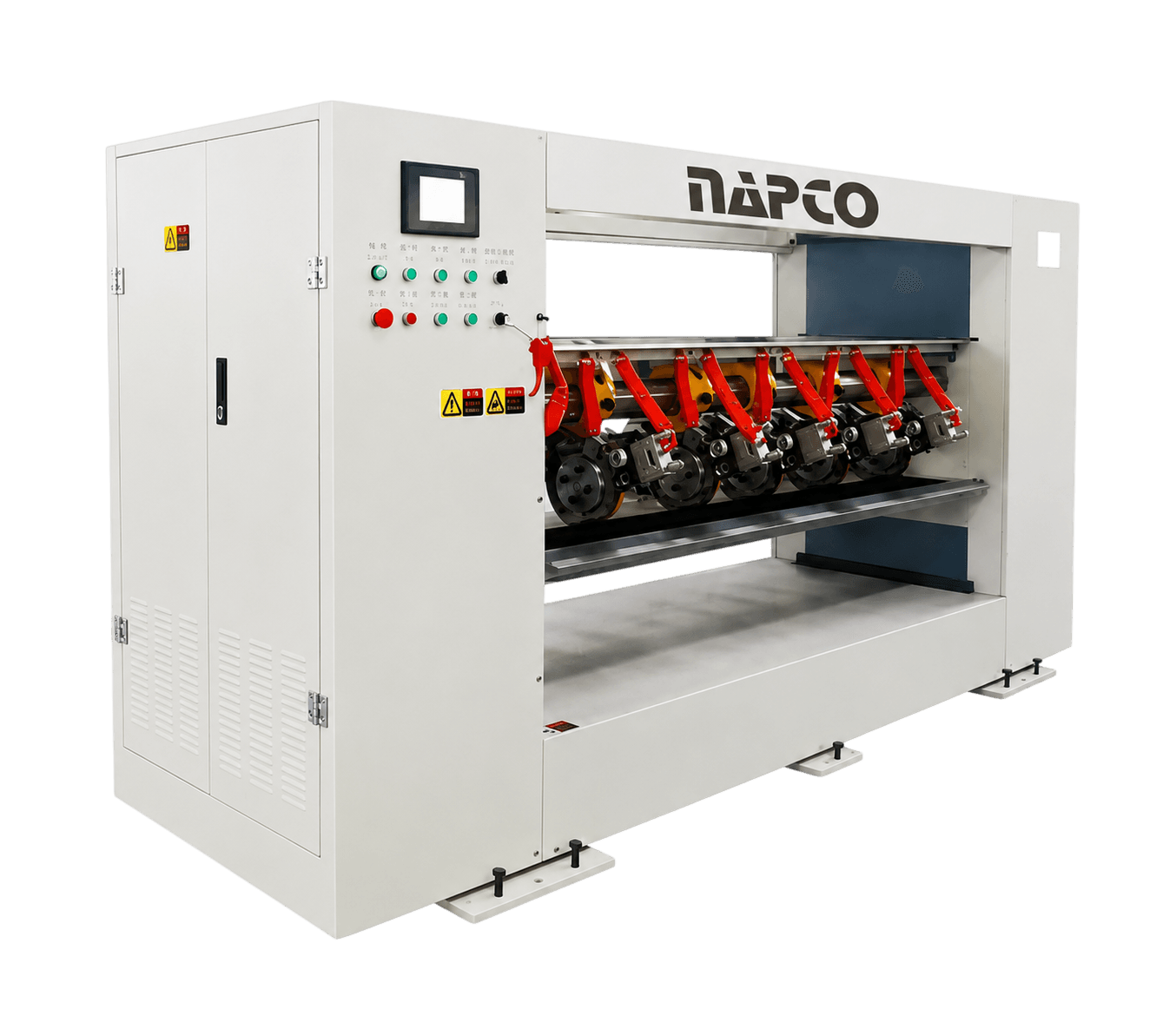

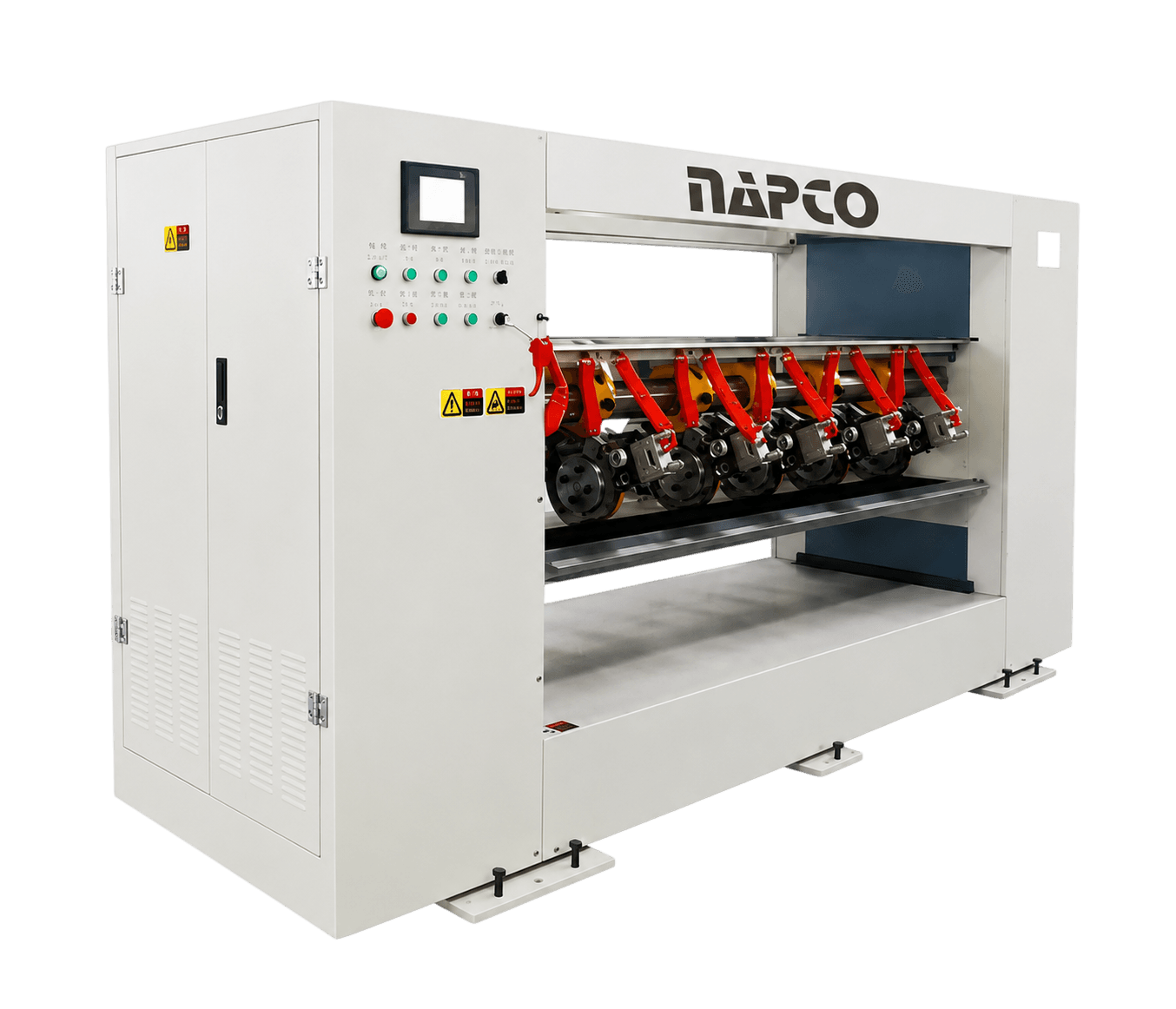

The TB-700 On-Line Thin Blade Slitter Scorer is built for high-speed corrugated board production, delivering precise slitting and scoring in a single operation. Its lifting mechanism, adjustable cutting heads, and robust construction provide accurate board dimensions, smooth operation, and reliable performance for modern packaging plants.
Delivering Quality Machines Across the Globe
USA
UAE
Saudi Arabia
Australia
France
Canada
South Africa
Brazil
India
Mexico
| Parameter | Specification |
|---|---|
| Model | TB-700 |
| Machine Type | On-Line Thin Blade Slitter Scorer |
| Design | Lifting Type |
| Slitting Blades | 4 Sets |
| Scoring Wheels | 6 Sets |
| Shaft System | Dual Shaft (Slitting & Scoring) |
| Working Width | 1400–2500 mm |
| Machine Alignment | Motorized |
The TB-700 On-Line Thin Blade Slitter Scorer is widely used for precision slitting and scoring in corrugated board production..
Four-step slitting and scoring process for accurate cutting, precise crease formation, and smooth board handling.
Corrugated board is fed into the machine with proper alignment for continuous processing.
Thin blade slitting heads accurately trim the board to the required width with clean edges.
Multiple scoring dies create accurate fold lines for easy box converting and folding.
Slitted and scored sheets are discharged smoothly, ready for the next production stage.
The TB-700 is a lifting-type slitting and scoring machine designed to perform precise cutting and crease formation for corrugated boards in continuous production lines.
The machine is equipped with 4 slitting blade sets and 6 scoring wheel sets, allowing accurate processing of corrugated boards.
Yes. Each slitting head is equipped with an automatic or manual blade grinding system, ensuring consistently sharp blades and clean cuts.
The TB-700 supports corrugated boards with working widths ranging from 1400 mm to 2500 mm.
Thin blade technology produces clean cuts, minimizes board crushing, reduces dust generation, and improves overall cutting accuracy, resulting in higher-quality finished products.
Yes. The TB-700 is specifically designed for on-line continuous operation, making it ideal for high-speed corrugated board manufacturing plants.
We provide end-to-end corrugated packaging solutions from individual machines to turnkey corrugated board plants.
