Load Reel
Paper reel is placed on the shaftless stand using forklift or hoist.
Width
1400 mm
Max. Diameter
1200 mm
Weight Capacity
3 Ton
Operation
Hydraulic
Brake
Pneumatic
Material
Heavy Duty MS

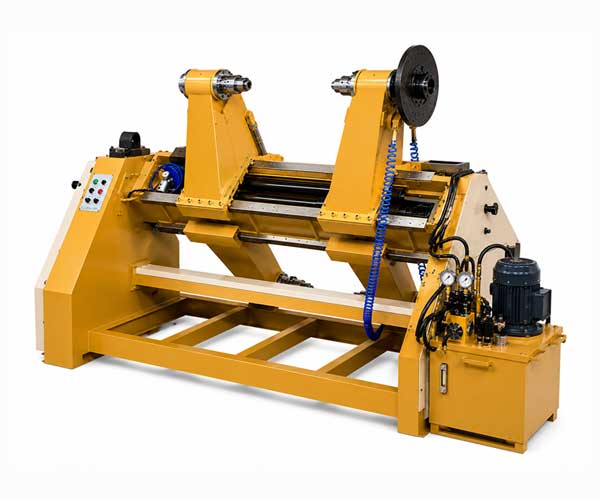

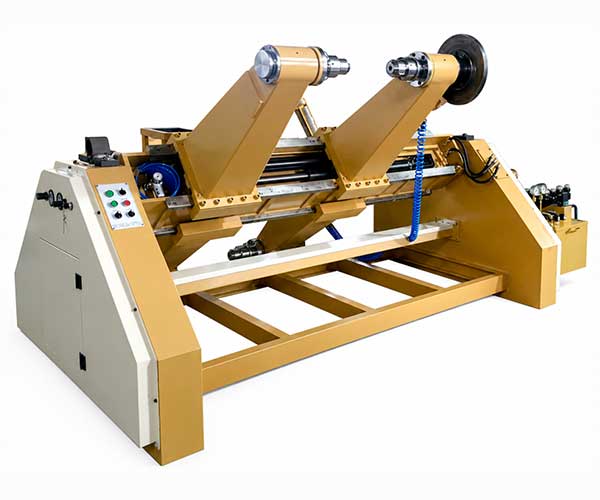

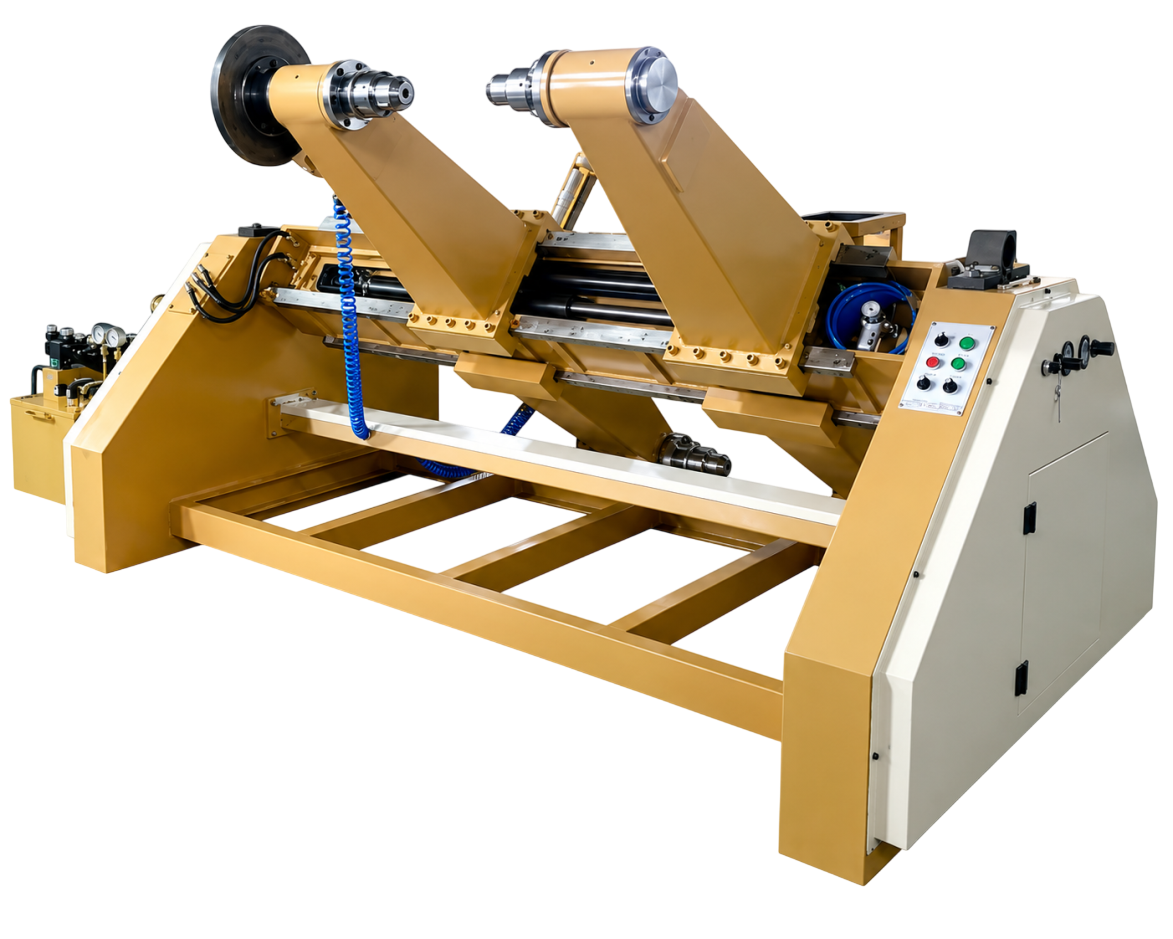

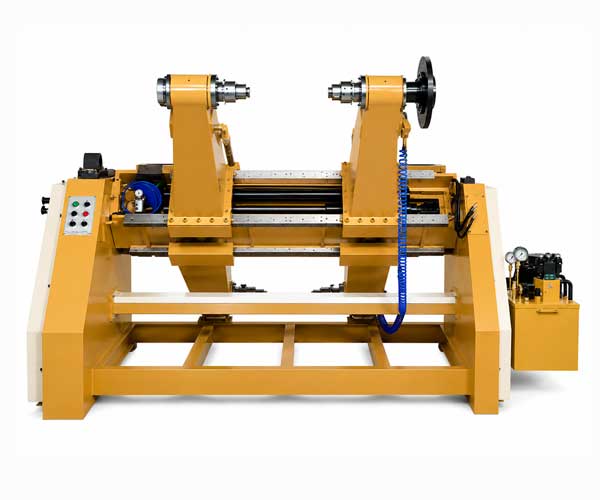

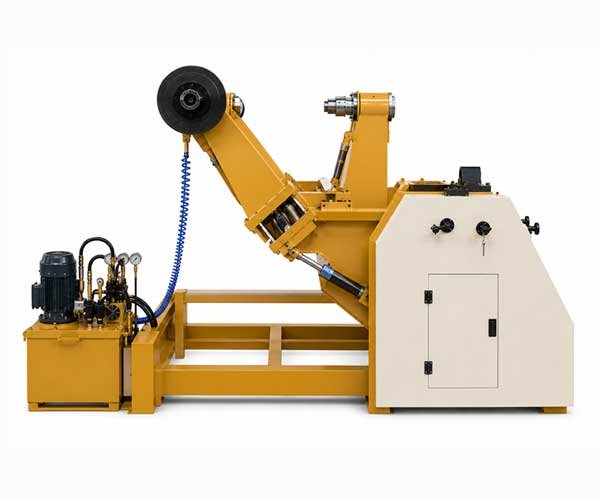

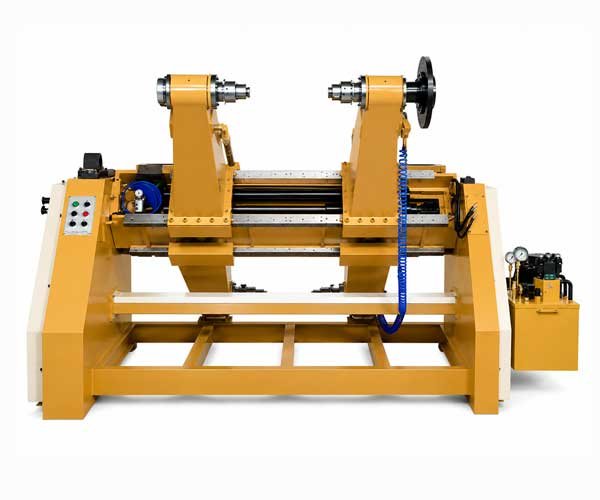

This hydraulic reel stand is a part of corrugated board production line used for holding and feeding paper reels. The see-saw movement, hydraulic lifting and shaftless loading system ensures maximum safety, minimum downtime and higher productivity.
Delivering Quality Machines Across the Globe
USA
UAE
Saudi Arabia
Australia
France
Canada
South Africa
Brazil
India
Mexico
| Parameter | Specification |
|---|---|
| Model | RS-108A |
| Machine Type | Hydraulic Shaftless See-Saw Design Reel Stand |
| Max. Reel Weight | 3 Ton (Each Side) |
| Core Size | 3", 6" (Standard) |
| Hydraulic System | Power Pack with Control Valve |
| Machine Structure | Heavy Duty MS Fabricated |
| Machine Weight | 2.5 Tons |
| Power Requirement | 3 HP/415V/50Hz |
Used in corrugated board production line for holding and feeding paper reels for corrugation.
Simple 4-step workflow for smooth reel loading and production start.
Paper reel is placed on the shaftless stand using forklift or hoist.
Hydraulic arms lift and position the reel to the required operating height.
See-saw mechanism auto-aligns the reel for precise web feeding.
Machine is ready — corrugated board production begins without delay.
It is a hydraulic paper roll handling machine used in corrugated board production lines to lift, clamp, align, and feed kraft paper rolls into the corrugation process efficiently.
The RS-108A is commonly installed in 3 Ply, 5 Ply, and 7 Ply corrugated board production plants for handling paper reels before they enter the single facer machine.
A shaftless reel stand provides faster paper roll loading, reduced changeover time, improved operator safety, better web tension control, and increased production efficiency compared to conventional shaft-type systems.
The machine is suitable for kraft paper rolls of various diameters and widths, making it compatible with different corrugated board manufacturing requirements.
The hydraulic system controls lifting, lowering, clamping, and centering automatically, reducing manual handling while ensuring smooth and accurate paper roll positioning.
Yes. The RS-108A is equipped with a braking system that helps maintain stable web tension, ensuring smooth paper feeding and high-quality corrugated board production.
