Glue Preparation
Glue is continuously circulated to maintain the correct viscosity for high-speed production.
Machine Speed
180 m/min
Machine Type
Single / Double / Triple
Working Width
1600–2500 mm
Glue Control
Automatic PLC System
Preheating
Dual Preheating Drums
Drive System
Independent Motor Drive

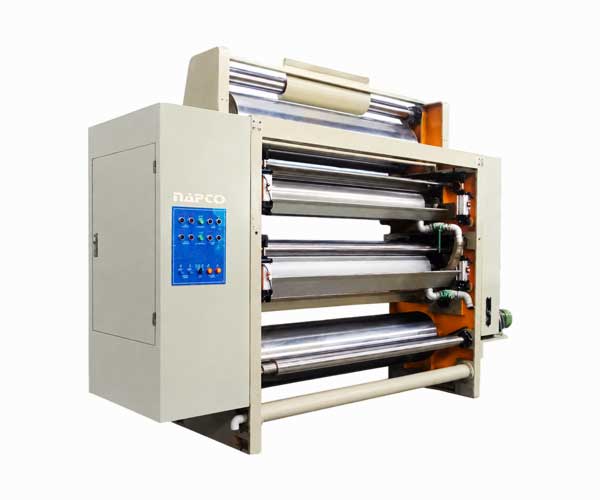

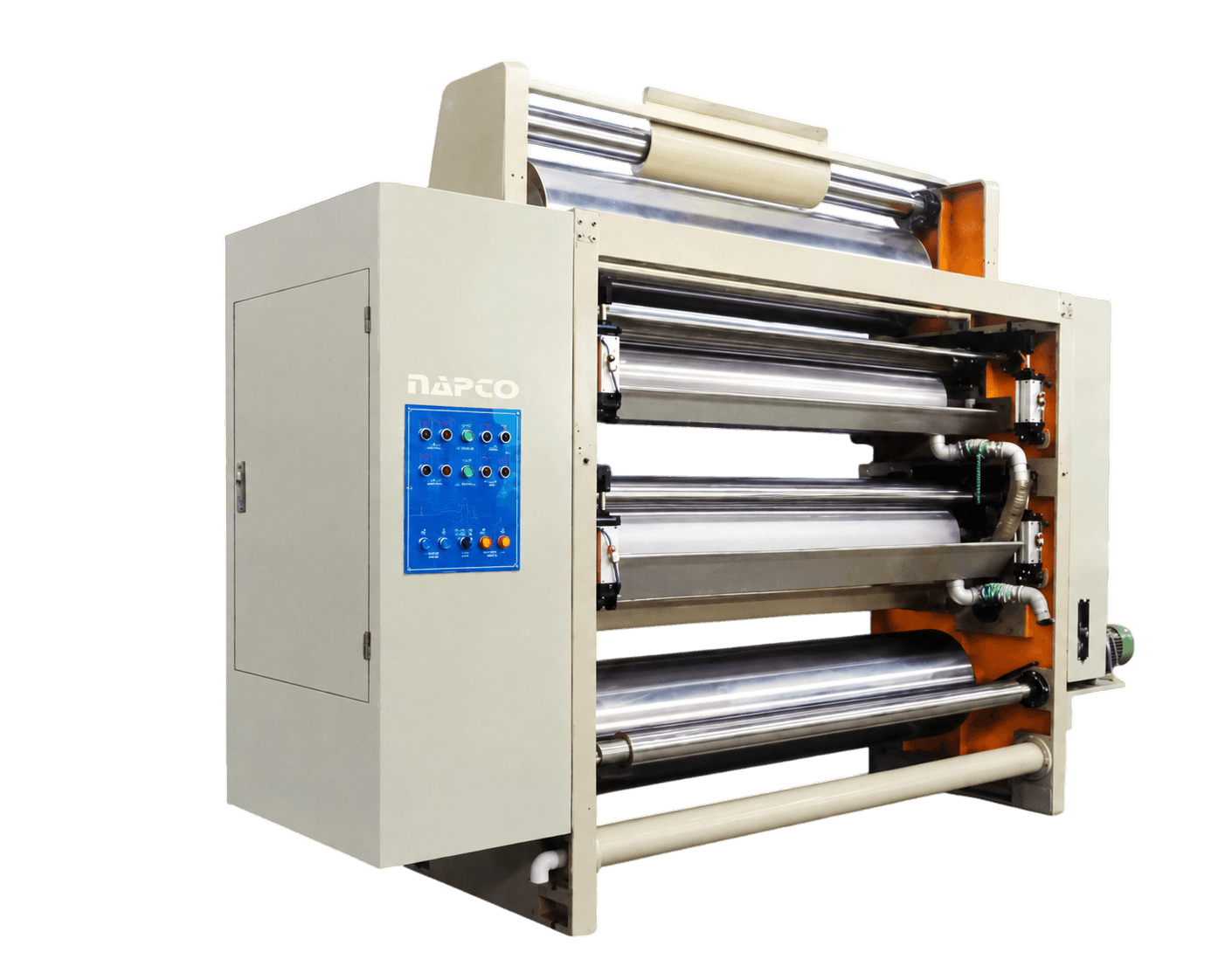

The GM-300 High-Speed Gluing Machine is designed for precision glue application in modern corrugated board production lines. Its PLC control system, automatic glue circulation, and synchronized drive technology ensure uniform adhesive transfer, improved board quality, and efficient high-speed operation with minimal glue wastage.
Delivering Quality Machines Across the Globe
USA
UAE
Saudi Arabia
Australia
France
Canada
South Africa
Brazil
India
Mexico
| Parameter | Specification |
|---|---|
| Model | GM-300 |
| Machine Type | High-Speed Gluing Machine (PLC Model) |
| Production Speed | 180 m/min |
| Control System | PLC with Digital Display |
| Glue Roll | Hard Chrome Plated, 25 LPI Engraved |
| Glue Quantity Control | Automatic & Manual |
| Working Width | 1600–2500 mm |
| Drive System | Independent Geared Motors |
The GM-300 High-Speed Gluing Machine is ideal for high-capacity corrugated board manufacturing requiring precise adhesive application.
Four-step PLC-controlled gluing process for high-speed adhesive application, precise synchronization, and superior board quality.
Glue is continuously circulated to maintain the correct viscosity for high-speed production.
PLC and encoder synchronize roller speed and automatically regulate glue quantity.
Chrome-plated glue rollers apply a uniform adhesive layer with accurate pressure control.
Perfectly bonded corrugated board is delivered continuously with maximum efficiency and consistency.
The GM-300 is a PLC-controlled gluing machine designed for accurate adhesive application in high-speed corrugated board production.
The machine is capable of operating at 180 meters per minute, making it suitable for large-scale manufacturing..
It supports Single Wall, Double Wall, and Triple Wall corrugated board production.
The PLC system automatically controls glue quantity, synchronizes machine speed, provides digital monitoring, and ensures consistent adhesive application with minimal waste.
The 25 LPI engraved hard chrome-plated rolls distribute adhesive evenly, resulting in stronger bonding, better board quality, and reduced glue consumption.
The GM-300 is available in 1600 mm to 2500 mm working widths to suit different production capacities.
