Paper Feeding
Corrugated paper enters the suction brake stand and is guided into the production line.
Working Width
1200–2500 mm
Suction System
High-Performance Blower
Web Alignment
Motorized Paper Guide
Flute Protection
Non-Contact Design
Control Station
Dual Operator Control
Application
Corrugated Board Line

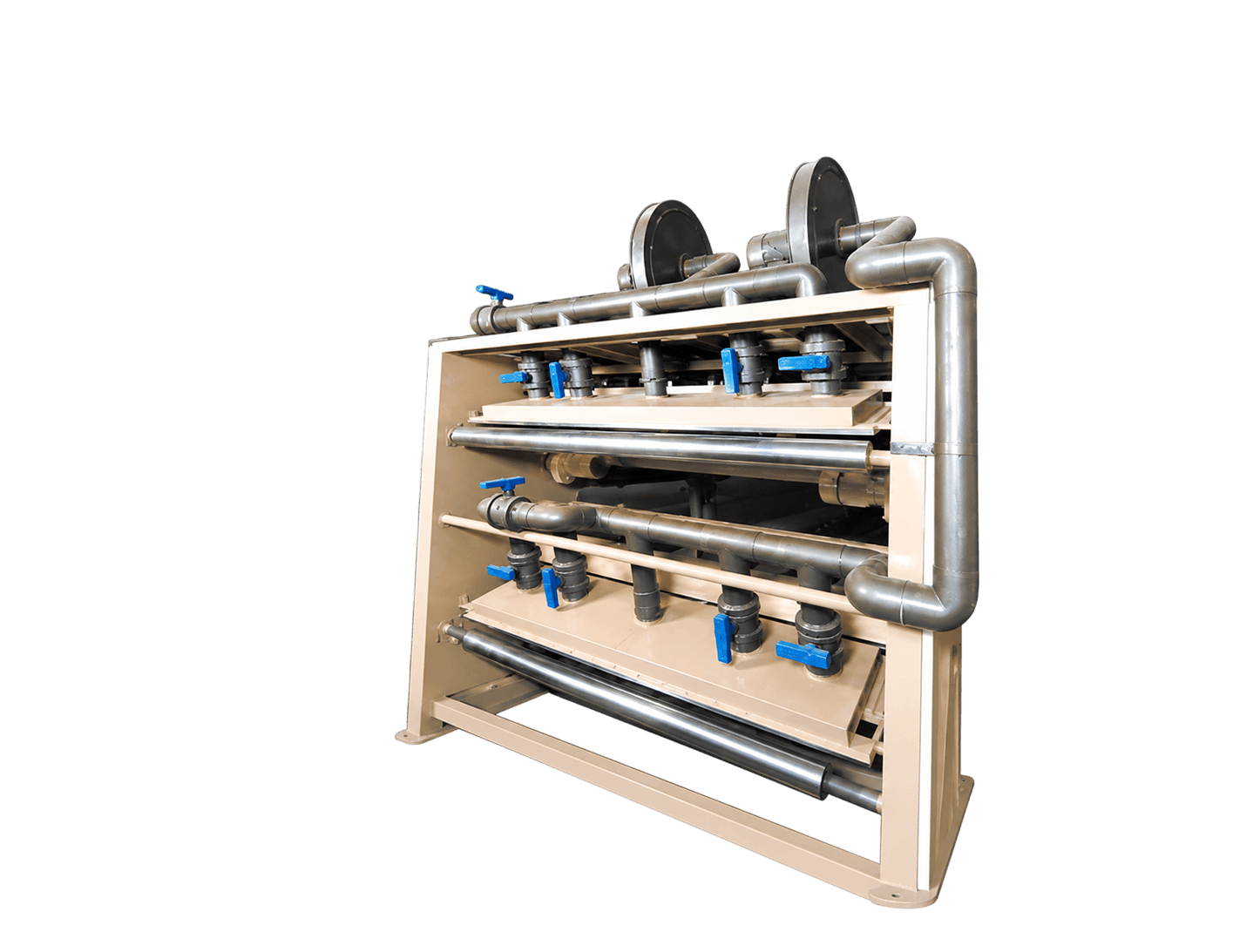

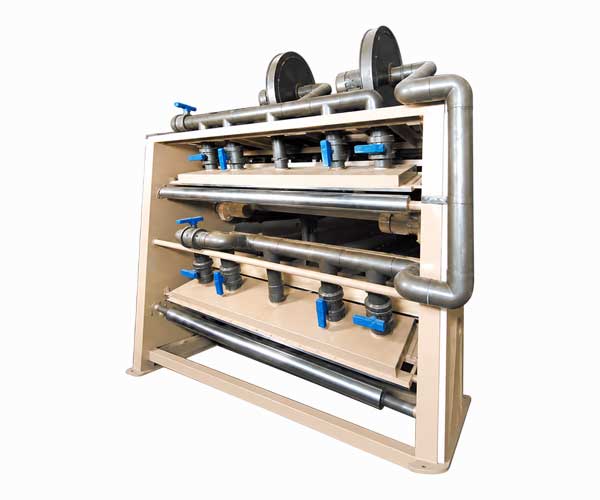

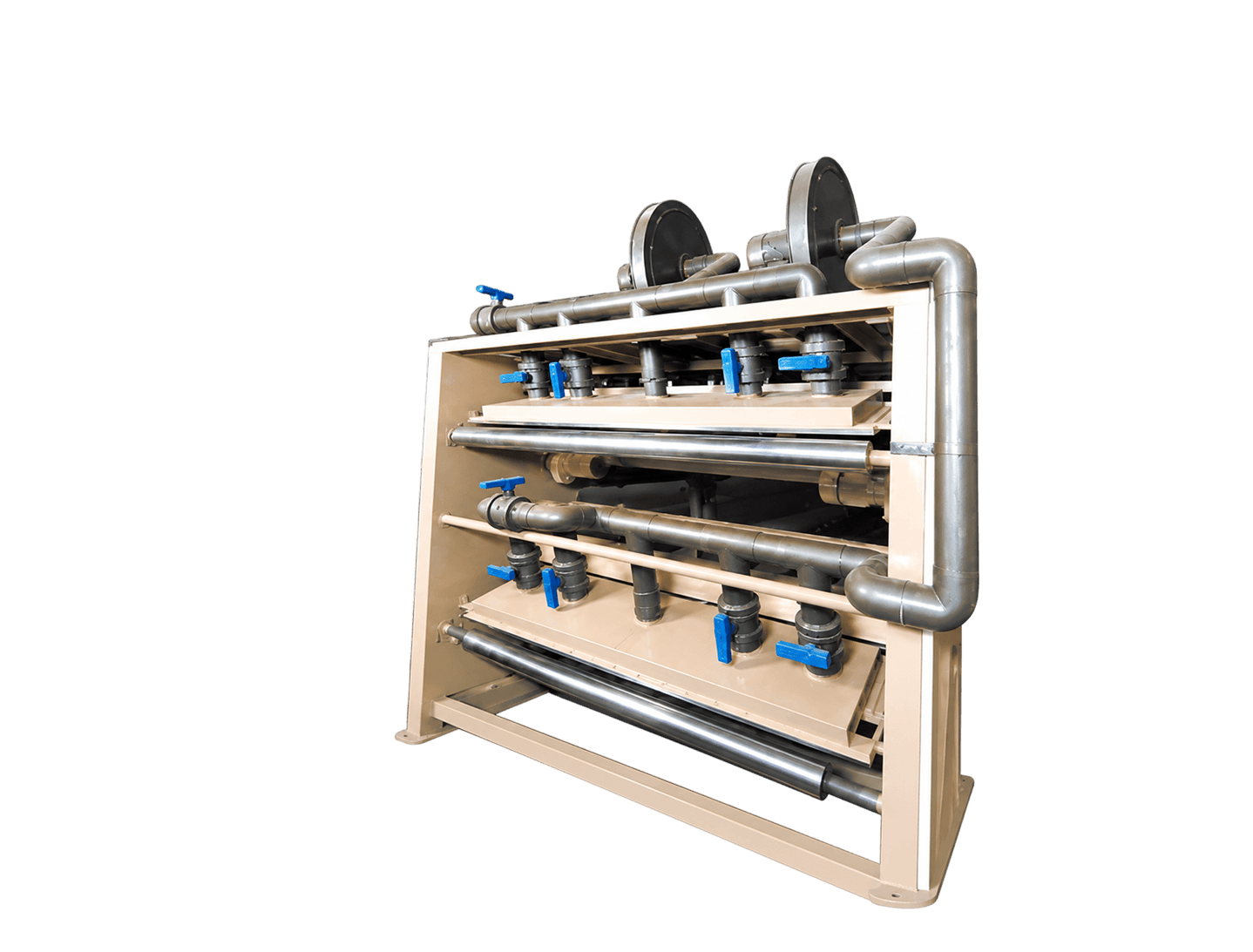

The SB-200 Suction Brake Stand is an essential unit in a corrugated board production line. It provides accurate paper web guiding and controls paper tension through an efficient suction braking system. The motorized paper guide plate ensures precise edge alignment while maintaining the correct paper width throughout production.
Delivering Quality Machines Across the Globe
USA
UAE
Saudi Arabia
Australia
France
Canada
South Africa
Brazil
India
Mexico
| Parameter | Specification |
|---|---|
| Model | SB-200 |
| Machine Type | Suction Brake Stand |
| Working Width | 1200–2500 mm |
| Paper Guide | Motorized |
| Web Alignment | Left & Right Adjustable |
| Suction Control | Adjustable Blower System |
| Control Station | Dual Control |
| Operation | Easy & User Friendly |
The SB-200 Suction Brake Stand is widely used in:
Four-step suction control process for precise web alignment, stable tension control, and smooth corrugated board production.
Corrugated paper enters the suction brake stand and is guided into the production line.
Motorized guide plates automatically align the paper web for accurate positioning.
Vacuum blower maintains proper web tension without damaging the flute structure.
Properly aligned board is transferred smoothly to the Double Baker for continuous production.
It aligns the paper web accurately and maintains proper paper tension before the board enters the Double Baker section.
The machine supports paper widths ranging from 1200 mm to 2500 mm.
The machine uses a motorized paper guide plate with left and right movement adjustment for precise web alignment.
No. The adjustable suction blower maintains paper tension without damaging the flute structure.
Yes. The SB-200 is designed for seamless integration with modern corrugated board production lines.
It is widely used in corrugated box manufacturing, packaging industries, paper converting plants, and corrugated board production units.
