Board Feeding
Corrugated board enters the machine and is guided smoothly with synchronized line speed.
Design Speed
200 m/min
Cutting Length
500–9999 mm
Cutting Accuracy
±1 mm
Drive System
AC Servo Motor
Working Width
1600–2500 mm
Control System
HMI & Servo Control

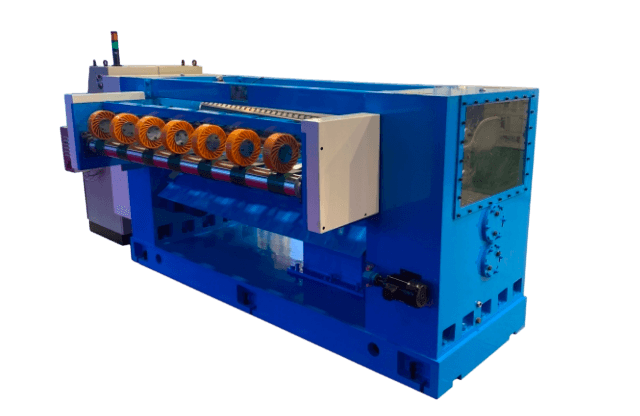

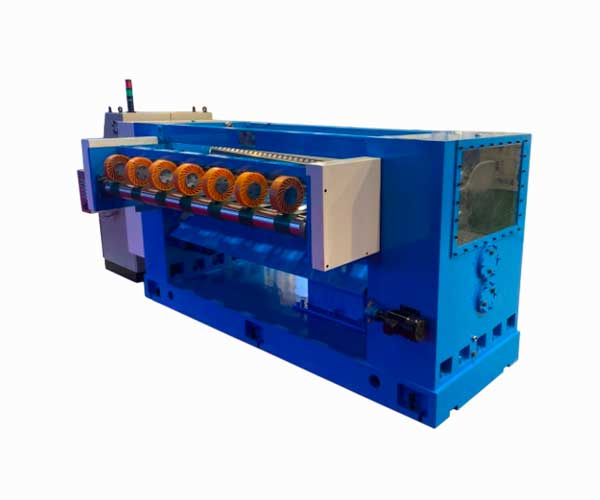

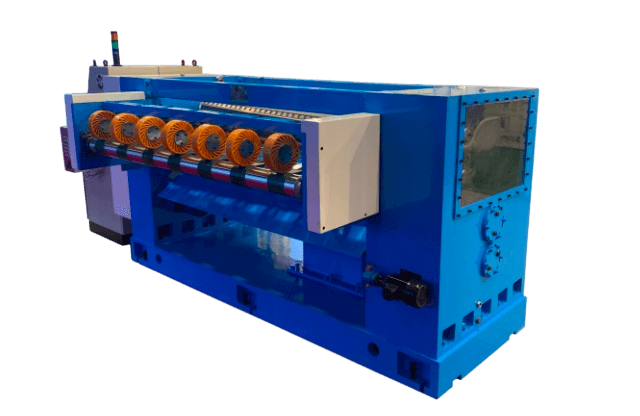

The NCH-700 NC Helical Cut Off Machine is engineered to provide fast and accurate cutting of corrugated boards in high-speed production lines. The machine uses premium-quality helical blades and a high-precision shaft system to ensure clean, burr-free cuts while maintaining excellent dimensional accuracy.
Delivering Quality Machines Across the Globe
USA
UAE
Saudi Arabia
Australia
France
Canada
South Africa
Brazil
India
Mexico
| Parameter | Specification |
|---|---|
| Model | NCH-700 |
| Machine Type | NC Helical Cut Off Machine |
| Maximum Speed | 200 m/min |
| Cutting Length | 500–9999 mm |
| Cutting Accuracy | ±1 mm |
| Drive System | AC Servo Motor |
| Control System | PLC with HMI Touch Screen |
| Available Width | 1600 / 1800 / 2200 / 2500 mm |
The NCH-700 NC Helical Cut Off Machine is widely used in:
Four-step helical cutting process for synchronized feeding, precision cutting, and high-speed corrugated board production.
Corrugated board enters the machine and is guided smoothly with synchronized line speed.
AC servo motor and controller automatically synchronize the cutting unit with the production line.
Precision helical blades cut the corrugated board smoothly with clean edges and ±1 mm accuracy.
Accurately cut sheets are discharged continuously and transferred to the stacking section for further processing.
The machine operates at speeds of up to 200 m/min, making it suitable for high-speed corrugated board production.
The machine supports cutting lengths from 500 mm to 9999 mm.
The NCH-700 provides a cutting accuracy of ±1 mm, ensuring precise and consistent results.
The machine uses high-alloy precision helical blades, designed for smooth, clean, and accurate cutting.
It is equipped with a PLC-based control system with an HMI touch screen and AC servo synchronization for precise operation.
The NCH-700 is widely used in corrugated board manufacturing plants, carton box production units, packaging industries, and paper converting facilities.
