Board Feeding
Corrugated board enters the machine with automatic line speed tracking for smooth processing.
Max Line Speed
180 m/min
Knife & Scorer
5 Knives / 8 Scorers
Control System
N.C. Pneumatic
Grinding System
Auto / Manual
Order Change
3–6 Seconds
Tracking System
Automatic Line Tracking

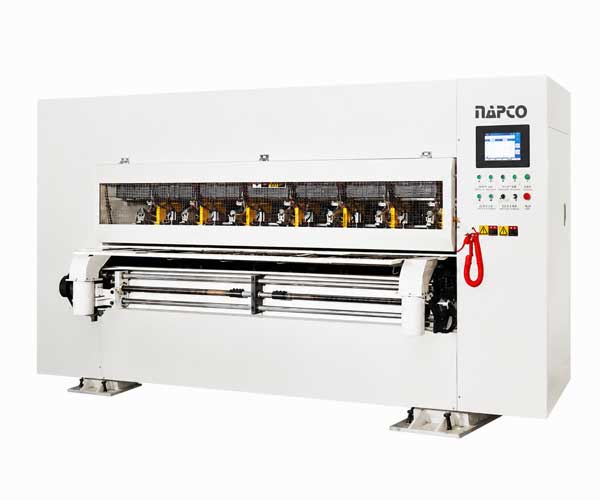

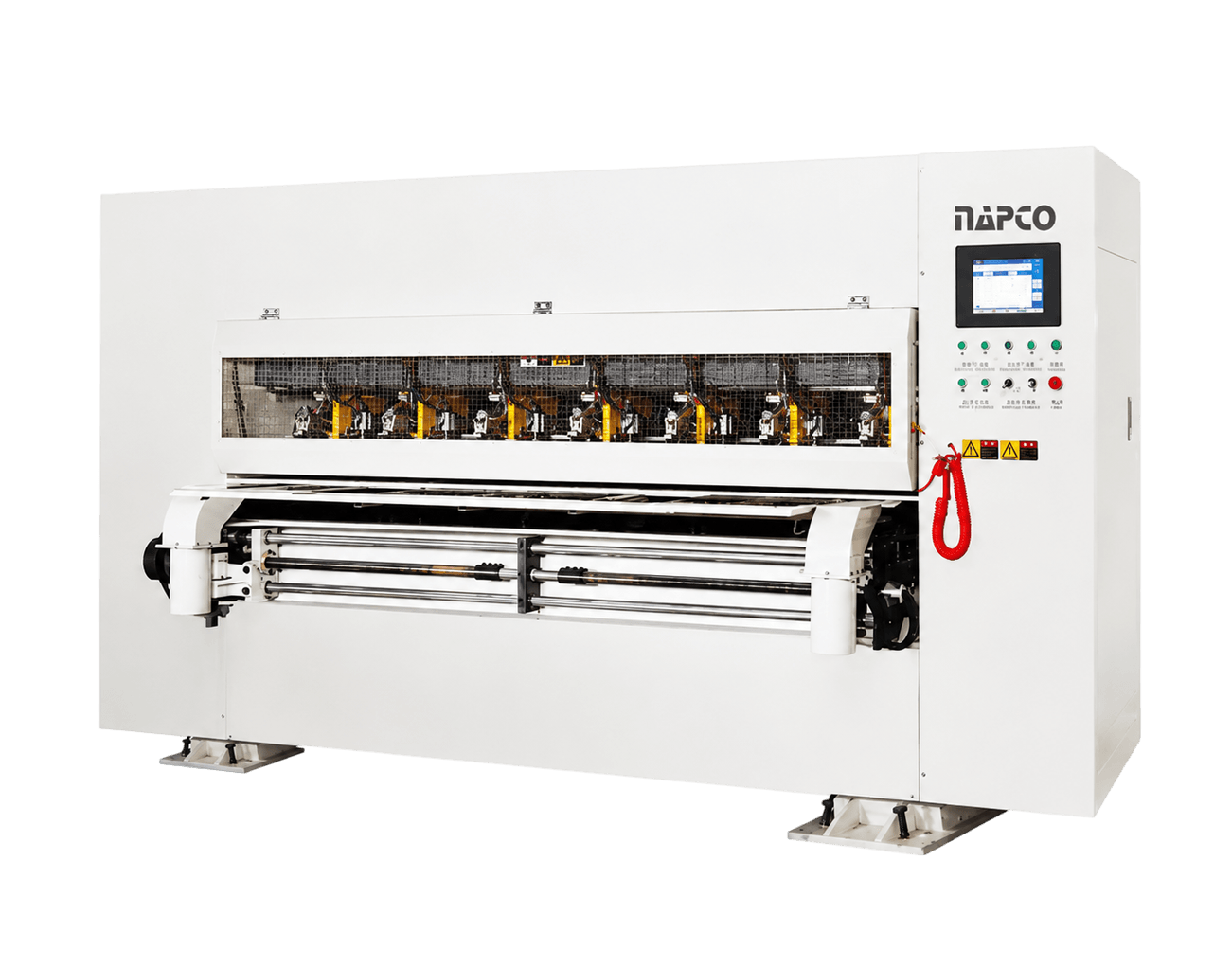

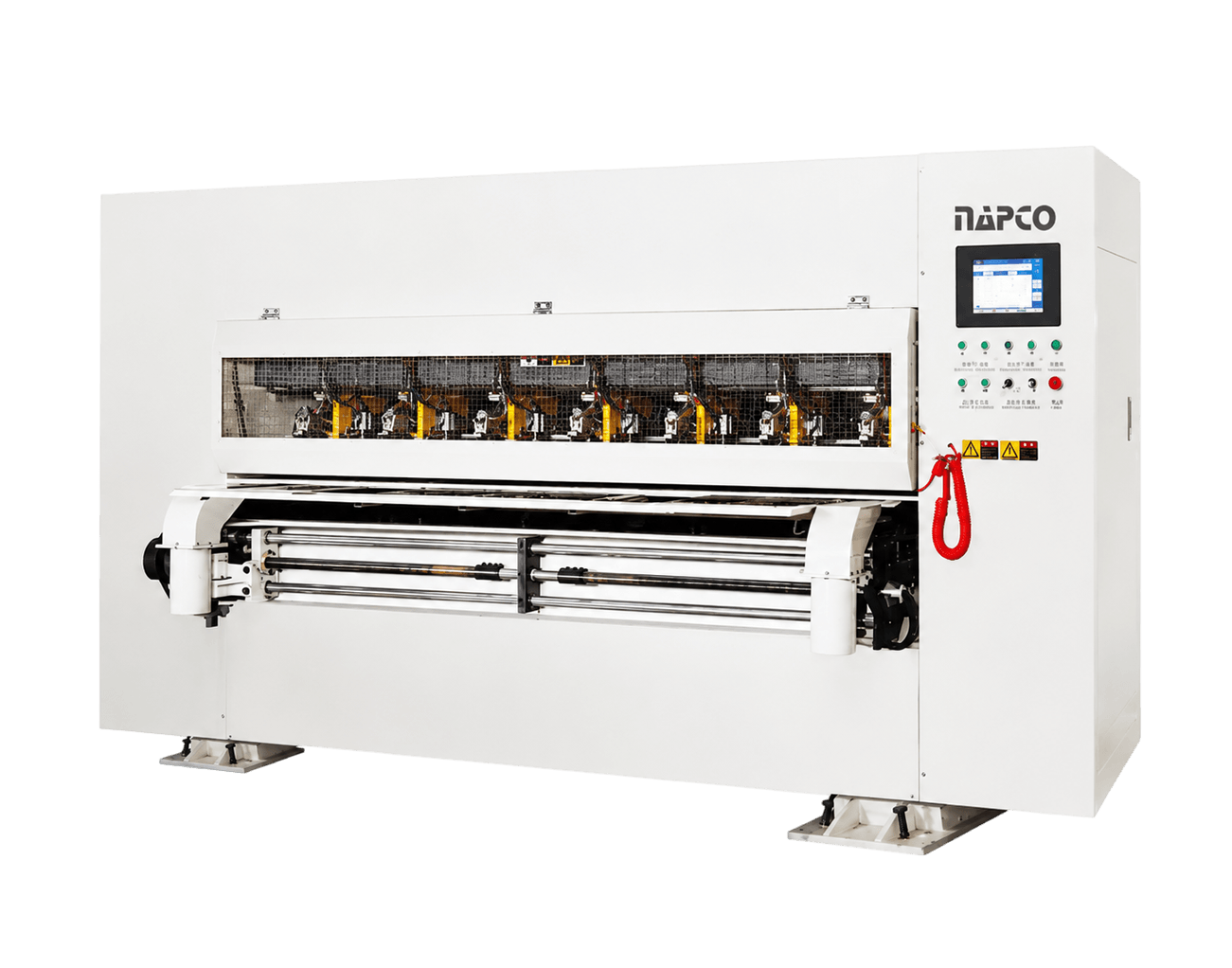

The TB-800 NC On-Line Slitter Scorer is engineered for modern corrugated board production lines, offering high-speed slitting and scoring with computerized precision. Its automatic positioning system and rapid order change capability improve productivity while ensuring clean cuts and accurate scoring for consistent board quality.
Delivering Quality Machines Across the Globe
USA
UAE
Saudi Arabia
Australia
France
Canada
South Africa
Brazil
India
Mexico
| Parameter | Specification |
|---|---|
| Model | TB-800 |
| Machine Type | NC On-Line Slitter Scorer |
| Control System | NC Computer Controlled |
| Maximum Speed | 180 m/min |
| Order Change Time | 3–6 Seconds |
| Machine Structure | Heavy Duty MS Fabricated |
| Blade Grinding | Automatic & Manual |
| Knife Holder | Epoxy Resin |
The TB-800 NC On-Line Slitter Scorer is widely used for precision slitting and scoring in high-speed corrugated board manufacturing.
Four-step NC-controlled slitting and scoring process for fast order change, accurate cutting, and continuous board production.
Corrugated board enters the machine with automatic line speed tracking for smooth processing.
The NC control system automatically positions knives and scorers for quick order changes.
Precision knives and scoring wheels cut and crease the board accurately for the required dimensions.
Finished sheets are discharged with clean cuts and precise score lines, ready for the next production stage.
The TB-800 is a computer-controlled slitting and scoring machine designed for high-speed corrugated board production with automatic positioning and rapid order changes.
The machine operates at speeds of up to 180 meters per minute, making it suitable for high-capacity production lines.
The TB-800 can complete an automatic order change in just 3 to 6 seconds, minimizing downtime and improving productivity.
Yes. It features computer-controlled automatic blade grinding, with manual calibration and fine adjustment options available when required.
The NC pneumatic positioning system precisely controls the knives and scorers, while automatic speed synchronization maintains consistent cutting and scoring quality throughout production.
The machine is ideal for corrugated box manufacturers, packaging companies, paper mills, and high-speed corrugated board production plants.
We provide end-to-end corrugated packaging solutions from individual machines to turnkey corrugated board plants.
