Sheet Receiving
Finished corrugated sheets are received smoothly from the previous production section.
Max Speed
100 m/min
Working Width
1200–1800 mm
Stacking Height
250 mm
Stack Length
3200 mm
Structure
Simplex / Duplex
Operation
Auto Stacking & Ejection

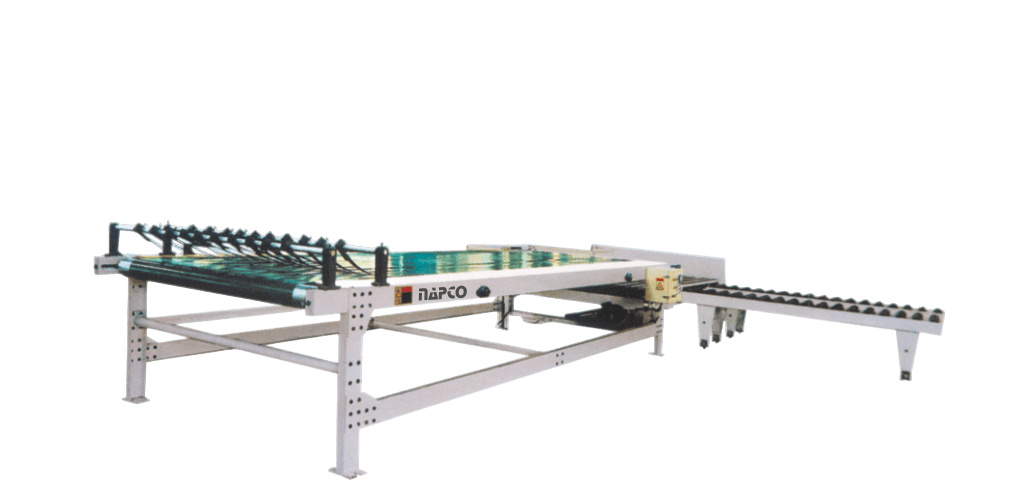

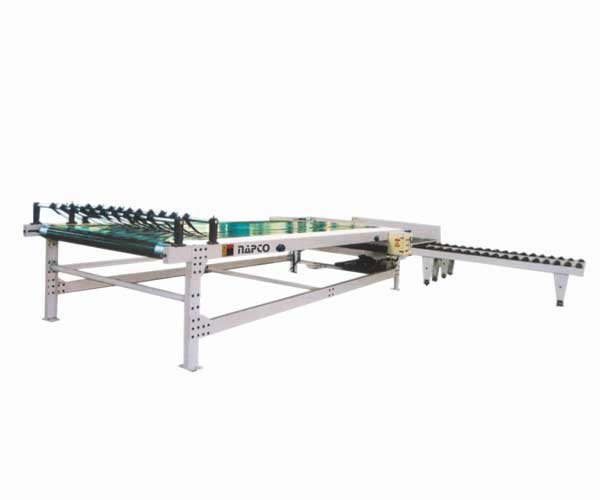

The STM-100 Sheet Conveyor is designed to transport, batch, and stack corrugated sheets efficiently after the cutting process. The machine provides smooth sheet conveying while automatically arranging sheets into uniform stacks, reducing manual handling and increasing production efficiency.
Delivering Quality Machines Across the Globe
USA
UAE
Saudi Arabia
Australia
France
Canada
South Africa
Brazil
India
Mexico
| Parameter | Specification |
|---|---|
| Model | STM-100 |
| Machine Type | Sheet Conveyor |
| Maximum Speed | 100 m/min |
| Maximum Stacking Length | 3200 mm |
| Maximum Stacking Width | 2500 mm |
| Available Width | 1200–1800 mm |
| Operation | Automatic |
| Conveyor Structure | Single / Duplex (Optional) |
Efficient Sheet Conveying & Automatic Stacking Solutions The STM-100 Sheet Conveyor is widely used in:
Four-step sheet conveying process for smooth transportation, accurate stacking, and efficient board handling.
Finished corrugated sheets are received smoothly from the previous production section.
Conveyor belts transport the sheets continuously while maintaining proper alignment and flow.
Sheets are stacked automatically or manually into neat bundles with controlled height and length.
Stacked sheets are discharged safely and made ready for packaging or the next processing stage.
The STM-100 operates at speeds of up to 100 m/min for efficient sheet handling.
The machine supports a maximum stacking length of 3200 mm and a maximum stacking width of 2500 mm.
Yes, the STM-100 is available with an optional duplex conveyor structure to meet different production requirements.
Yes. The machine automatically conveys, batches, stacks, and ejects corrugated sheets with minimal manual intervention.
The STM-100 is widely used in corrugated board manufacturing plants, carton box factories, packaging industries, and paper converting units.
Yes. The STM-100 features a user-friendly design with a simple control system and a robust construction. Its low-maintenance components ensure reliable performance, reduced downtime, and easy servicing, making it ideal for continuous industrial operation.
