Max. Speed
200 m/min
Paper Width
1000–2200 mm
Flute Type
B, C, E
Main Motor Power
18.5–30 kW
Operation
Fully Automatic
Machine Weight
Approx. 6,000–10,000 kg
The machine incorporates hardened alloy steel corrugating rolls, precision glue application, pneumatic pressure control, and an advanced gearbox drive system to achieve stable performance even during continuous operation. Its robust construction and intelligent engineering make it ideal for high-capacity corrugated packaging plants.
Delivering Quality Machines Across the Globe
USA
UAE
Saudi Arabia
Australia
France
Canada
South Africa
Brazil
India
Mexico
| Parameter | Specification |
|---|---|
| Model | SF-927 |
| Machine Type | Fingerless Single Facer Paper Corrugating Machine |
| Working Width | 1400–2500 mm |
| Heating Method | Steam Heated |
| Roll Hardness | 55–58 HRC |
| Vacuum System | Fingerless Vacuum Suction |
| Cassette System | Quick Roll Change Design |
| Production Speed | High-Speed Operation |

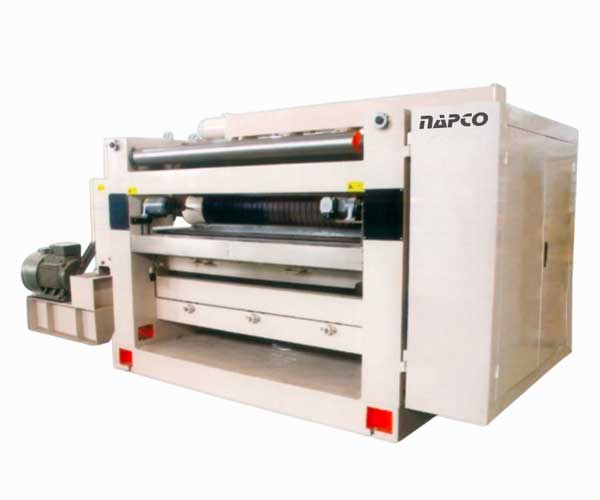

The SF-927 Fingerless Single Facer is widely used for manufacturing high-quality corrugated board in packaging industries.
High Speed Fingerless Single Facer Paper Corrugating Machine Workflow
Load kraft paper roll onto the reel stand for smooth feeding.
The paper is guided accurately towards the corrugating rolls.
Flutes are formed under heat and pressure using corrugating rolls.
Adhesive is applied evenly on flute tips for strong bonding.
The liner is pressed with fluted paper to create corrugated board.
Finished sheets are cut to size and stacked for further processing.
The SF-927 is a high-speed corrugating machine designed to produce single-face corrugated board using advanced fingerless vacuum technology.
The corrugating rolls are manufactured from Ni-Cr-Mo alloy steel with a hardness of 55–58 HRC and are hard chrome plated for long service life.
The machine uses 360 mm diameter corrugating rolls for stable and precise flute formation.
The SF-927 is available in working widths ranging from 1400 mm to 2500 mm.
The fingerless vacuum system ensures accurate flute formation, minimizes flute damage, improves board quality, and supports stable operation at high production speeds.
Yes. The machine features a cassette-type roll changing system, allowing fast and convenient replacement of corrugating rolls, reducing maintenance downtime.
