Paper Roll Loading
Kraft paper roll is mounted on the reel stand and aligned properly.
Design Speed
80 m/min
Corrugated Roller
Ni-Cr-Mo Alloy Steel
Roller Surface
Hard Chrome Plated
Flute Roll Ø
280 mm
Glue System
Pneumatic
Vacuum Suction
Heavy Duty Blower
Control System
Pneumatic
Heating Type
Steam Heated
Available Width
1400–2500 mm
Drive System
Individual Gear Box
Roll Hardness
55–58 HRC
Machine Type
Fingerless Pneumatic

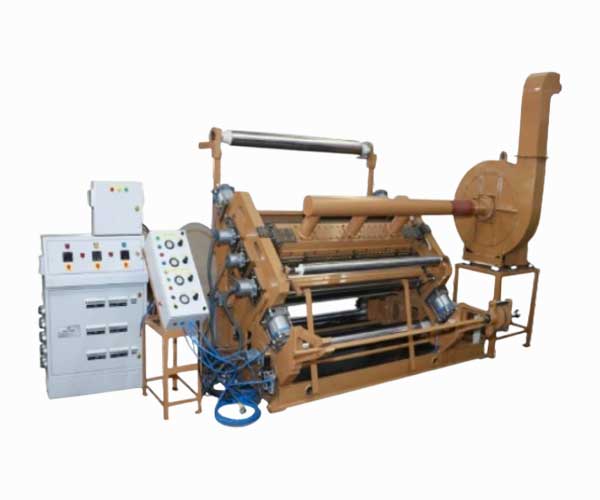

The SF-930 Single Facer Paper Fingerless Corrugating Machine is designed to deliver reliable corrugated board production with excellent flute quality and consistent bonding. Its fingerless vacuum technology enhances flute formation while reducing paper damage and improving production efficiency.
Delivering Quality Machines Across the Globe
USA
UAE
Saudi Arabia
Australia
France
Canada
South Africa
Brazil
India
Mexico
| Parameter | Specification |
|---|---|
| Model | SF-930 |
| Machine Type | Single Facer Paper Fingerless Corrugating Machine |
| Design Speed | 80 m/min |
| Upper Flute Roll Diameter | 270 mm |
| Lower Flute Roll Diameter | 280mm |
| Lubrication | Fully Automatic Motorized System |
| Safety Features | Alarm & Timer |
| Speed Control | VFD Control Panel |
The SF-930 Single Facer Paper Fingerless Corrugating Machine is suitable for manufacturing premium-quality corrugated board for various industrial packaging applications.
Simple 8-step workflow for SF-930 Single Facer Paper Corrugating Machine.
Kraft paper roll is mounted on the reel stand and aligned properly.
Paper web is smoothly fed through guide rollers with proper tension.
Steam-heated corrugating rolls create uniform corrugated flutes.
Adhesive is evenly applied on the flute tips.
Liner paper is bonded with the corrugated medium using pressure rollers.
Steam heating cures the adhesive for strong bonding.
Finished single face board is delivered smoothly for further processing.
PLC system monitors speed, temperature and production quality.
The SF-930 is a pneumatic-operated fingerless single facer machine designed for producing high-quality single-face corrugated board with consistent flute formation and reliable adhesive bonding..
The machine is designed to operate at speeds of up to 80 meters per minute, making it suitable for medium to high-capacity corrugated board production.
The SF-930 features a heavy-duty helical gear drive, ensuring smooth power transmission, reduced vibration, and reliable long-term performance.
Yes. It is equipped with a fully automatic motorized lubrication system that continuously lubricates critical components, reducing maintenance requirements and increasing machine life.
The machine uses a precision engraved glue roll, a special glue dam system, and pneumatic controls to ensure uniform adhesive transfer and strong paper bonding..
The SF-930 uses a steam heating system for proper paper conditioning and efficient corrugation during production.
We provide end-to-end corrugated packaging solutions from individual machines to turnkey corrugated board plants.
