Board Feeding
Corrugated board enters the drive roll stand and is positioned for smooth conveying.
Operating Speed
150 m/min
Bottom Roll Ø
630 mm
Working Width
1200–2500 mm
Drive System
Gear Box Reduction
Drive Roll
Double Helical Rubber
Lubrication
Oil Bath System

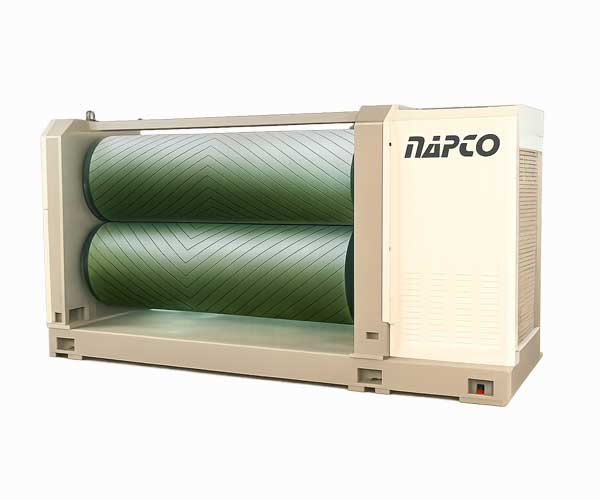

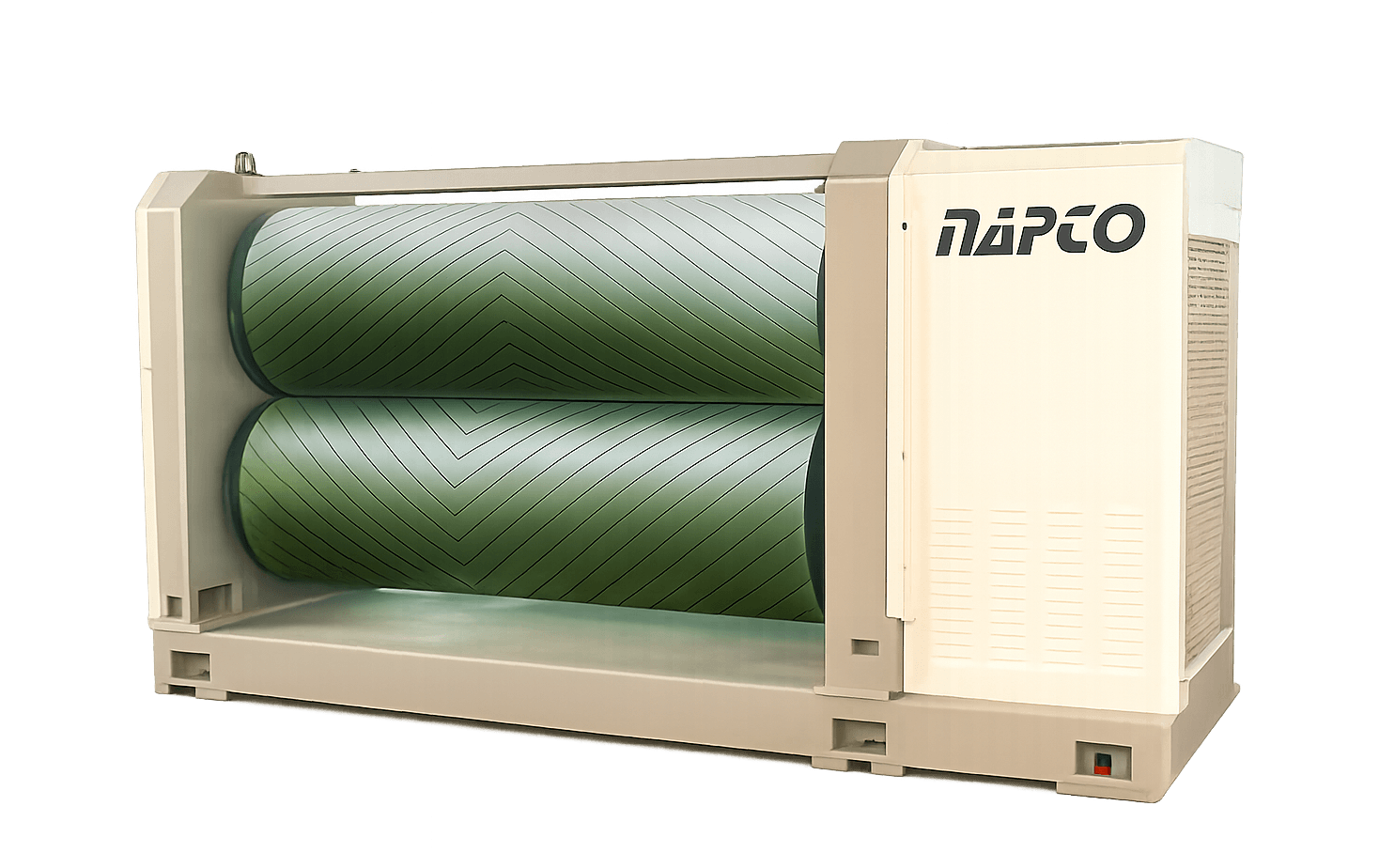

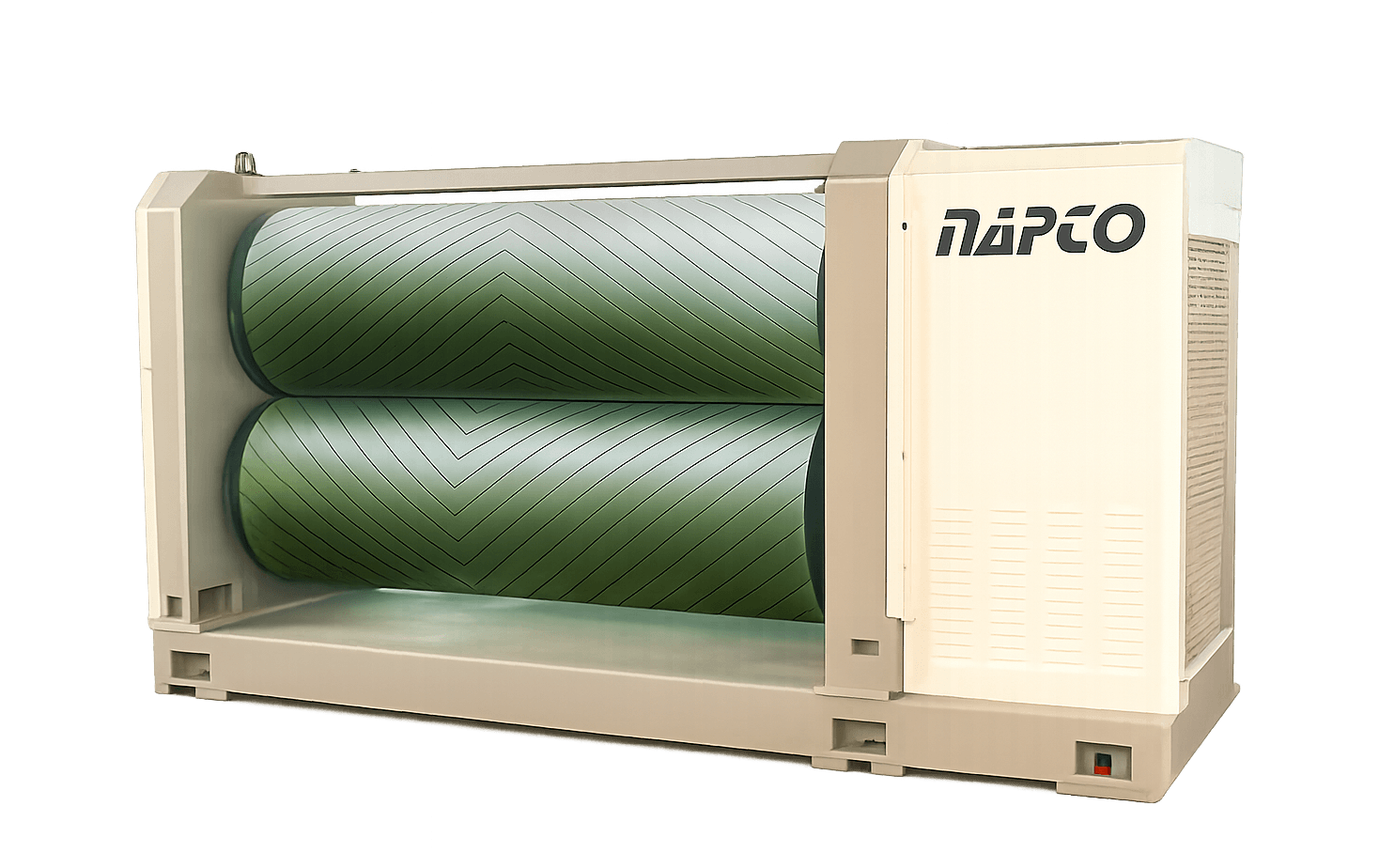

The DR-101 Drive Roll Stand is engineered to transport corrugated boards smoothly and efficiently through the production line. Its high-traction rubber-coated rolls, gearbox reduction drive, and automatic lubrication system ensure reliable operation, reduced maintenance, and consistent performance in continuous production.
