Width
1200 - 2500 mm
Max. Diameter
350 - 1500 mm
Weight Capacity
Up to 3 Ton
Operation
Fully Hydraulic
Brake
Pneumatic
Material
Heavy Duty MS

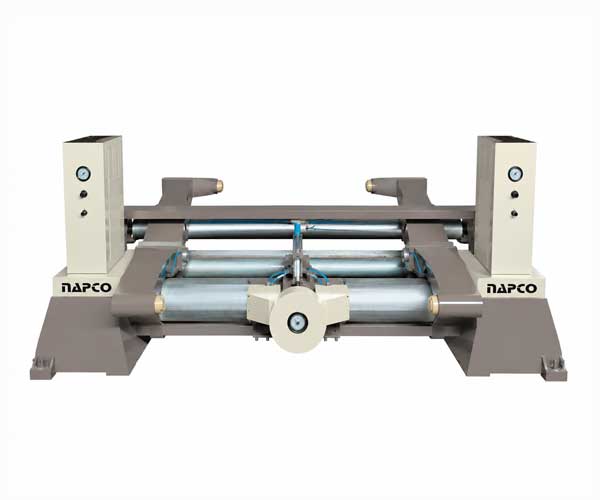

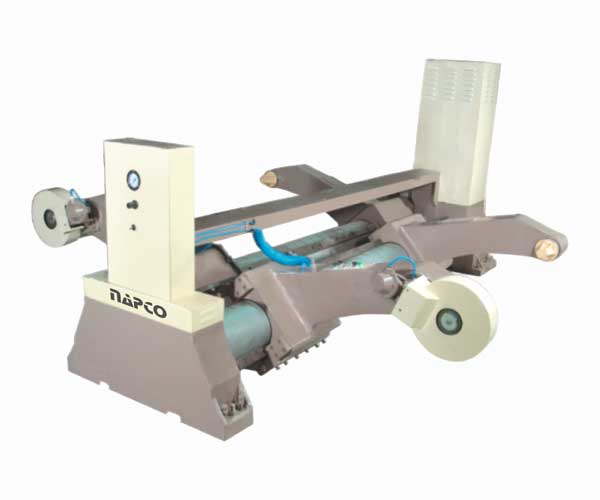

The RS-107 Shaftless Reel Stand Hydraulic is specially designed for corrugated board production plants to provide reliable paper reel loading, lifting, clamping, and feeding. Its fully hydraulic mechanism minimizes manual effort while improving production efficiency, safety, and operational accuracy.
Delivering Quality Machines Across the Globe
USA
UAE
Saudi Arabia
Australia
France
Canada
South Africa
Brazil
India
Mexico
| Parameter | Specification |
|---|---|
| Model | RS-107 |
| Machine Type | Shaftless Reel Stand Hydraulic |
| Max. Reel Weight | 3 Ton (Each Side) |
| Core Size | 3", 6" (Standard) |
| Hydraulic System | Hydraulic Power Pack with Control Valve |
| Machine Structure | Heavy Duty Fabricated Mild Steel |
| Machine Weight | 2.5 Tons |
| Power Requirement | 3 Phase, 415V, 50Hz |
RS-107 Shaftless Reel Stand Hydraulic is used in corrugated board production lines for holding, loading and feeding paper reels efficiently and safely.
Our Hydraulic Shaftless Reel Stand ensures safe reel handling, precise alignment and uninterrupted paper feeding for efficient corrugated board production.
Paper reel is safely placed onto the shaftless reel stand using a forklift or overhead crane.
Hydraulic cylinders lift the paper reel smoothly and position it at the required operating height.
Hydraulic clamping securely holds the reel while side and vertical adjustment ensure perfect alignment.
Pneumatic brake system maintains proper web tension for smooth paper feeding and stable machine performance.
After complete alignment and tension adjustment, the reel is ready for continuous corrugated board production.
The hydraulic shaftless reel stand delivers safe, reliable and uninterrupted operation with high production efficiency.
It is a fully hydraulic paper reel handling machine used to lift, clamp, and feed heavy paper reels in corrugated board production lines.
The RS-107 can handle paper reels weighing up to 3 tons per side.
Yes. It features a pneumatic brake system for manual tension control, with an optional automatic pneumatic tension brake available..
Yes. The machine includes a fully hydraulic expansion chuck system with opening, closing, left/right, and up/down adjustment.
The RS-107 is widely used in corrugated board manufacturing plants, packaging industries, paper mills, and other continuous web production facilities..
Its heavy-duty construction, precision hydraulic operation, reliable tension control, and low maintenance design make it an excellent solution for modern corrugated board production lines.
