Paper Loading
Kraft paper reel is mounted and aligned properly for smooth and continuous feeding.
Design Speed
80 m/min
Working Speed
Up to 60 m/min
Flute Roll Ø
284 mm
Roll Material
Special Alloy Steel
Heating
Steam Heat
Control System
PLC Speed Control

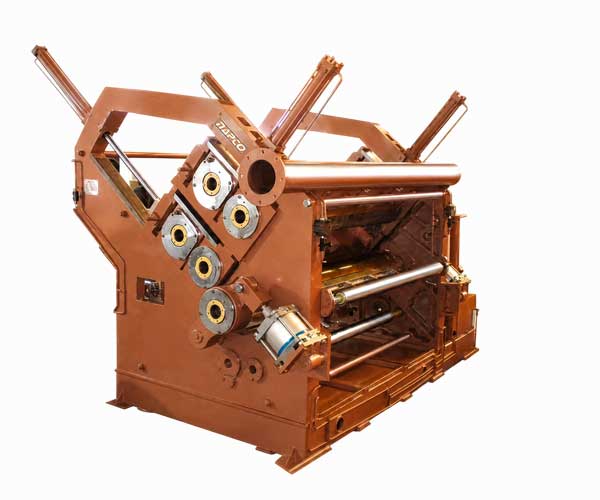

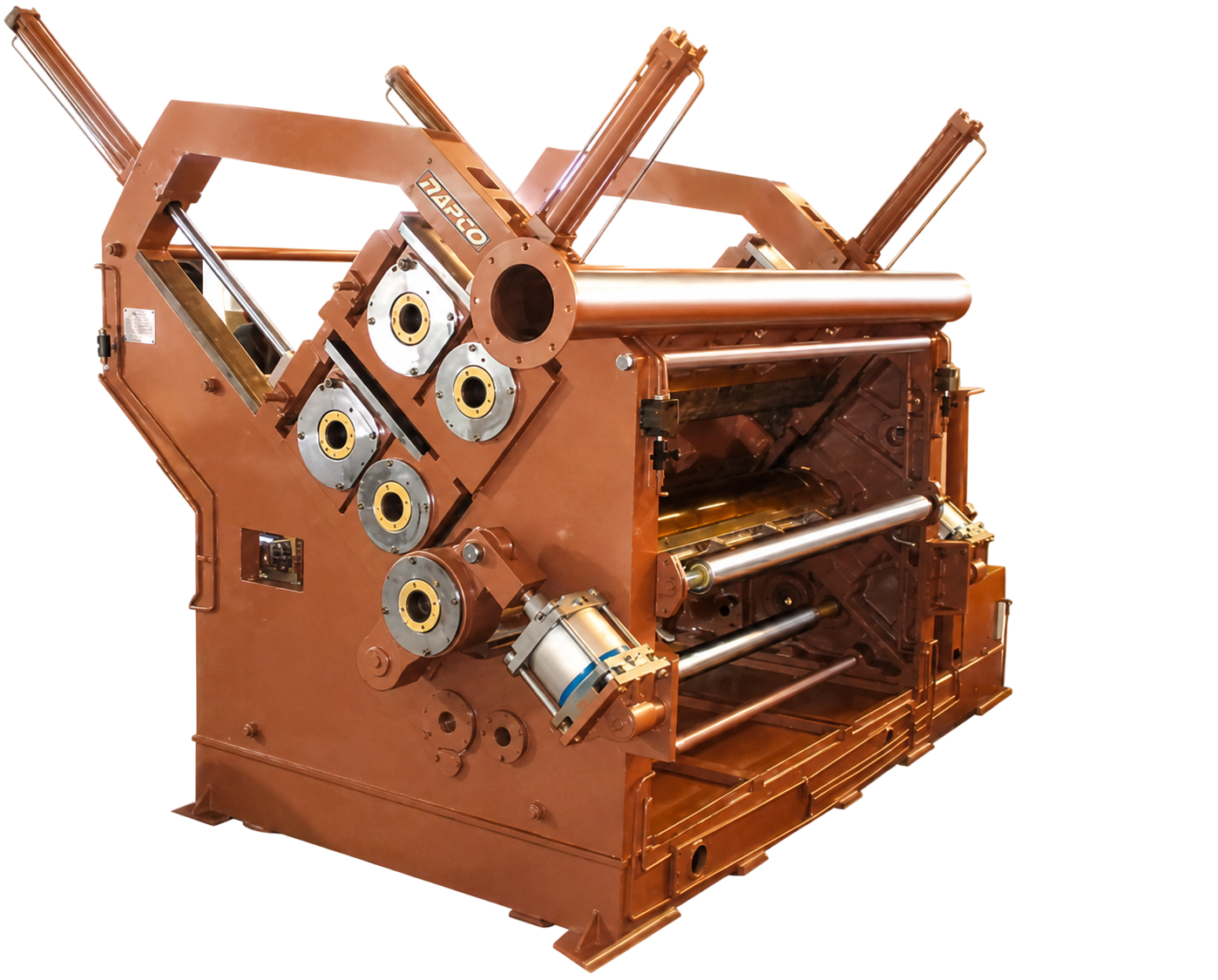

The SF-929D Fingerless Single Facer Corrugating Machine is engineered to provide high-quality corrugated board production with the flexibility of a dual-roll cassette system. Its hydraulic quick-roll change mechanism allows operators to change flute profiles quickly, significantly reducing machine downtime and improving productivity.
Delivering Quality Machines Across the Globe
USA
UAE
Saudi Arabia
Australia
France
Canada
South Africa
Brazil
India
Mexico
| Parameter | Specification |
|---|---|
| Model | SF-929D |
| Machine Type | Fingerless Single Facer Corrugating Machine (Dual Roll High Speed) |
| Design Speed | 80 m/min |
| Lower Flute Roll Diameter | 284 mm |
| Pressure Roll Diameter | 305 mm |
| Roll Change System | Hydraulic Quick Roll Change Cassette |
| Drive System | Helical Gear Box |
| Speed Control | A.C. Frequency Drive (VFD) |
The SF-929D Fingerless Single Facer Corrugating Machine is ideal for high-quality corrugated board manufacturing where quick flute profile changes and continuous production are essential.
Four simple stages ensure high-speed flute formation, accurate bonding, and consistent corrugated board production.
Kraft paper reel is mounted and aligned properly for smooth and continuous feeding.
Fingerless vacuum suction feeds the paper accurately while maintaining perfect web tension.
Steam-heated alloy flute rolls create uniform flute profiles with excellent strength.
Glue is applied precisely and high-quality corrugated board is delivered continuously.
The SF-929D is a dual-roll high-speed fingerless corrugating machine designed to produce premium-quality single-face corrugated board with quick flute profile change capability.
The machine is designed for production speeds of up to 80 meters per minute, delivering reliable and efficient corrugated board manufacturing.
The hydraulic quick-roll change cassette allows operators to change corrugating rolls quickly, reducing machine downtime and increasing production efficiency.
The corrugating rolls are manufactured from special alloy steel, providing excellent durability, wear resistance, and long service life.
The machine uses a continuous glue circulation system with a precision glue dam, ensuring uniform adhesive transfer and consistent bonding quality.
Yes. The SF-929D is equipped with an A.C. Frequency Drive (VFD) that allows operators to adjust production speed according to manufacturing requirements.
