Board Feeding
Freshly glued corrugated board enters the Double Baker through the conveyor system.
Design Speed
60 / 100 / 180 m/min
Working Width
1200–2500 mm
Heating Plate
110 mm × 600 mm
Cooling Section
Press Rolls Available
Belt Control
Auto Pneumatic
Heating System
Integral Press Roll

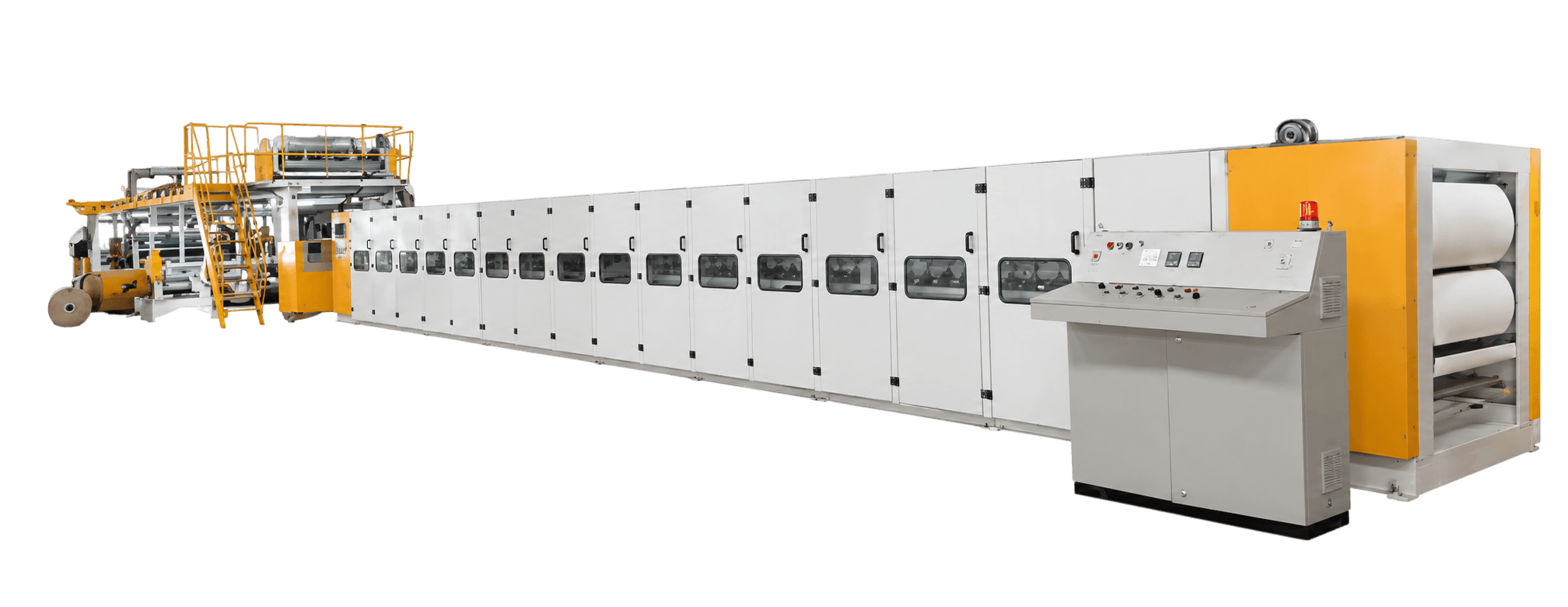

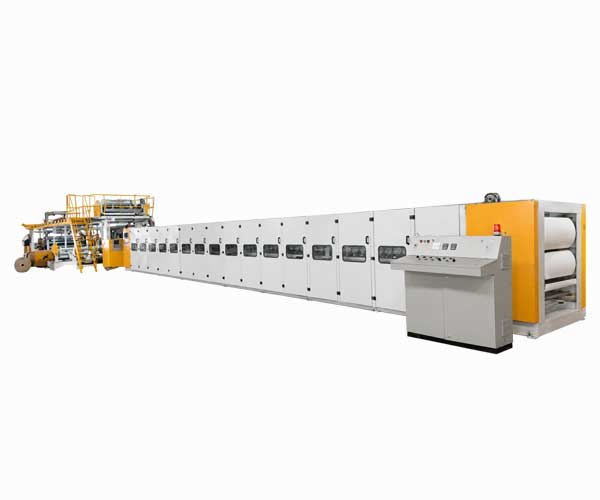

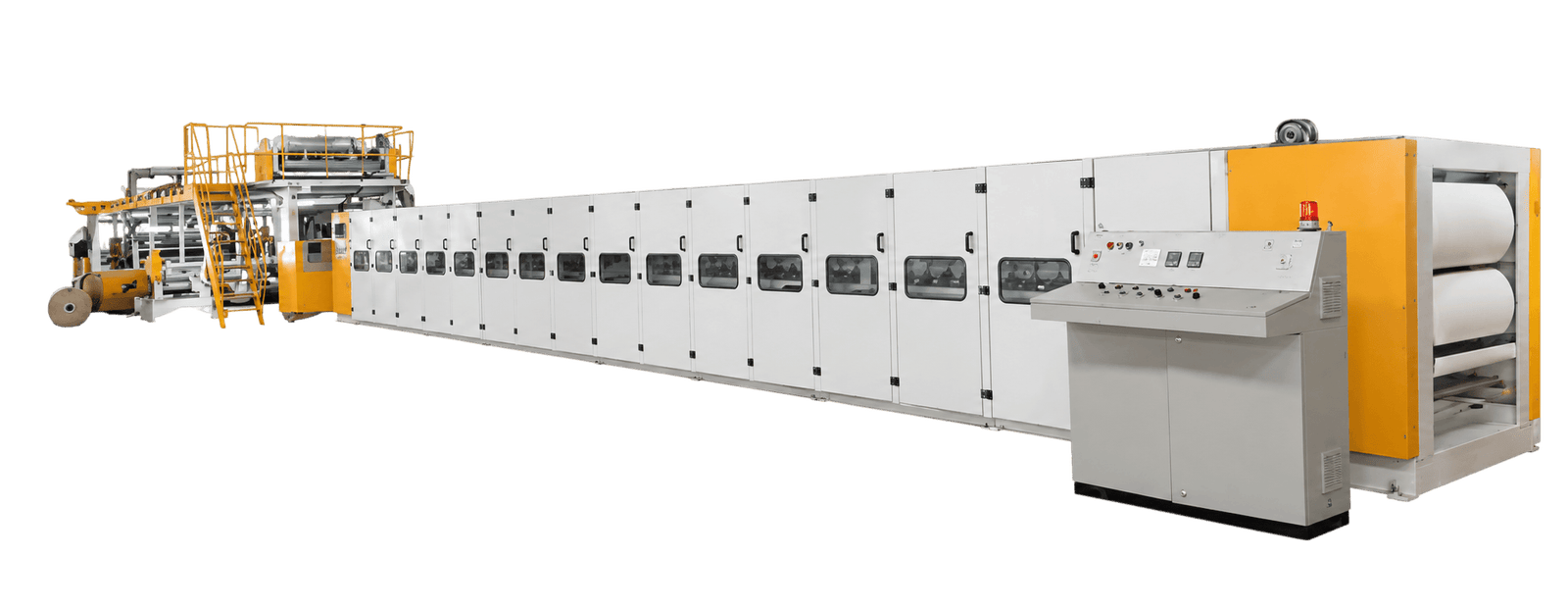

The DB-525 Double Baker is specially designed for drying and bonding corrugated boards after the gluing process. The machine provides consistent heat transfer through multiple heating plates while the upper and lower belts maintain stable pressure to ensure strong adhesion between paper layers.
Delivering Quality Machines Across the Globe
USA
UAE
Saudi Arabia
Australia
France
Canada
South Africa
Brazil
India
Mexico
| Parameter | Specification |
|---|---|
| Model | DB-525 |
| Machine Speed | 60 / 100 / 180 m/min |
| Heating Plate Height | 1100 mm |
| Heating Plate Width | 600 mm |
| Number of Heating Plates | Up to 18 |
| Cooling System | Press Roll |
| Available Width | 1200–2500 mm |
| Control System | Centralized Electrical Panel |
The DB-525 Double Baker is widely used in corrugated board manufacturing plants for:
Four-step heating and drying process for strong bonding, controlled moisture removal, and high-quality corrugated board production.
Freshly glued corrugated board enters the Double Baker through the conveyor system.
Heated plates apply uniform heat to cure the adhesive and improve board strength.
Pneumatic pressure belts maintain board flatness while removing excess moisture.
Fully bonded and dried corrugated board exits the machine, ready for slitting and cutting.
The machine uses an automatic pneumatic upper and lower belt pressure system.
Press roll cooling is used to improve board finishing quality.
It is mainly used in corrugated board plants, carton box manufacturing units, and packaging industries.
The machine is suitable for kraft paper rolls of various diameters and widths, making it compatible with different corrugated board manufacturing requirements.
The machine supports board widths ranging from 1200 mm to 2500 mm..
Up to 18 heating plates can be configured depending on production requirements.
We provide end-to-end corrugated packaging solutions from individual machines to turnkey corrugated board plants.
