Raw Material Loading
Starch, chemicals, and water are loaded into the mixing system in the required proportions.
Glue Output
500–800 kg/batch
Batch Time
30 min/batch
Power Rating
22 kW
Air Pressure
0.5–0.8 MPa
Steam Usage
0.015 m³/batch
Machine Size
8400 × 3500 × 3800 mm

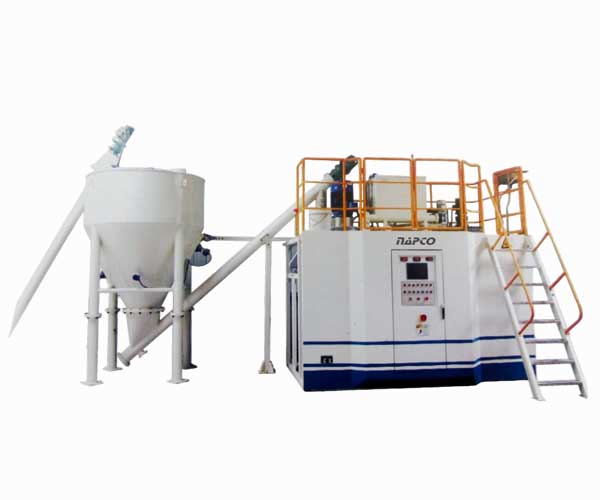

The GMA-105 Automatic Glue Making Machine is specially designed for preparing high-quality starch adhesive used in corrugated board production. It automates the complete glue preparation process, including mixing, heating, and blending, ensuring uniform adhesive consistency in every batch.
Delivering Quality Machines Across the Globe
USA
UAE
Saudi Arabia
Australia
France
Canada
South Africa
Brazil
India
Mexico
| Parameter | Specification |
|---|---|
| Model | GMA-105 |
| Machine Type | Automatic Glue Making Machine |
| Glue Output | 500–800 kg/batch |
| Batch Production Time | 30 min/batch |
| General Power | 22 kW |
| Glue Usage Point Power | 3 kW (Optional) |
| Steam Consumption | 0.015 m³/batch |
| Control System | PLC-Based Automatic Control |
Used in corrugated board production line for holding and feeding paper reels for corrugation.
Four-step automatic glue preparation process for consistent adhesive quality, controlled mixing, and continuous production.
Starch, chemicals, and water are loaded into the mixing system in the required proportions.
The machine automatically mixes all ingredients to produce a uniform adhesive with controlled viscosity.
Steam heating and continuous agitation prepare high-quality glue suitable for corrugated board production.
Finished adhesive is transferred directly to the gluing machine for continuous and efficient production.
The machine produces 500–800 kg of starch glue per batch, depending on the production requirements.
The GMA-105 completes one production batch in approximately 30 minutes.
The machine is designed to produce high-quality starch-based adhesive for corrugated board manufacturing.
The machine operates with a compressed air pressure of 0.5–0.8 MPa for smooth and reliable performance.
Yes. The GMA-105 features a PLC-based fully automatic control system, reducing manual intervention and ensuring consistent glue quality.
The GMA-105 is widely used in corrugated board manufacturing plants, carton box factories, packaging industries, paper converting facilities, and automatic corrugation lines.
