Board Feeding
Corrugated board enters the machine smoothly and is aligned for accurate cutting.
Design Speed
100 m/min
Cutting Length
600–9999 mm
Cutting Accuracy
±1 mm
Drive System
Servo Control
Working Width
1200 / 1800 mm
Lubrication
Oil Splash System

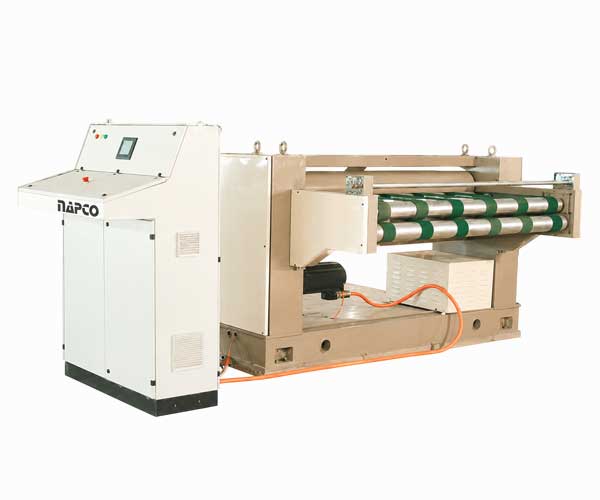

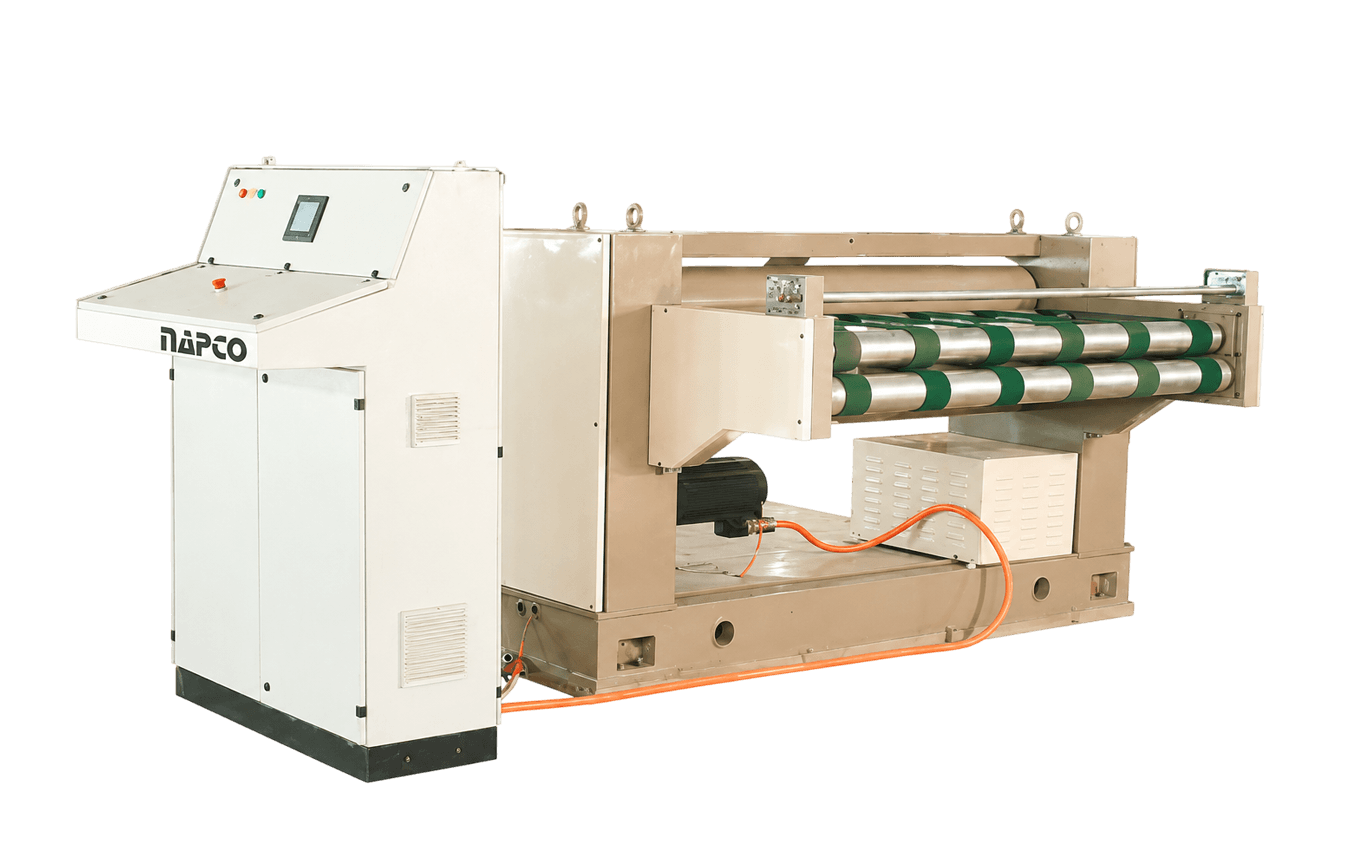

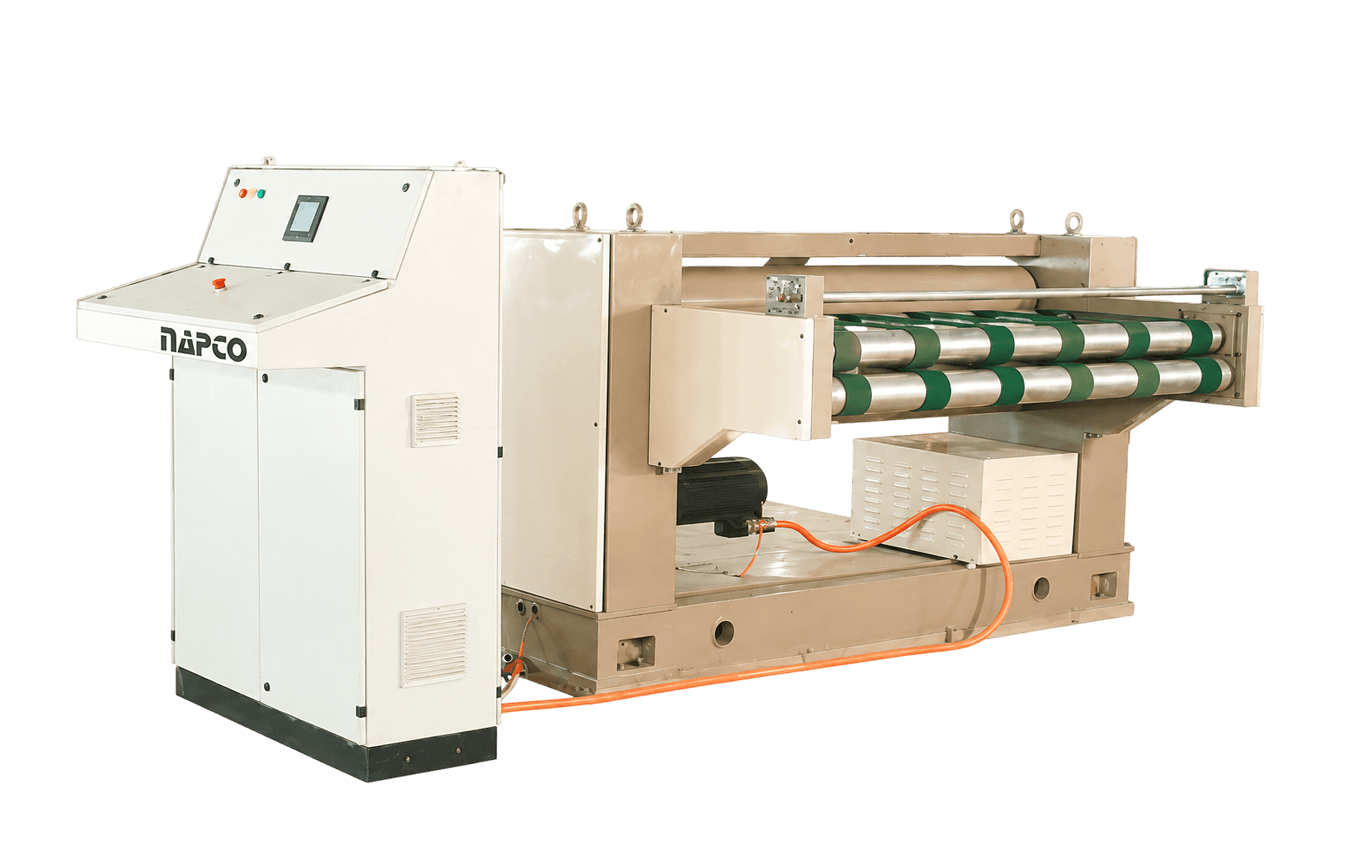

The NCS-500 NC Cut Off Machine is engineered for precise length cutting of corrugated boards. Its servo-controlled drive system, hardened precision gears, and user-friendly NC interface ensure consistent cutting accuracy, reliable performance, and efficient operation in modern corrugated board production lines.
Delivering Quality Machines Across the Globe
USA
UAE
Saudi Arabia
Australia
France
Canada
South Africa
Brazil
India
Mexico
| Parameter | Specification |
|---|---|
| Model | NCS-500 |
| Machine Type | NC Cut Off Machine |
| Maximum Design Speed | 100 m/min |
| Cutting System | Straight Knife |
| Drive System | Servo Drive |
| Controller | Servo Controller with NC Interface |
| Cutting Length | 600–9999 mm |
| Lubrication System | Heavy-Duty Splash Lubrication3 |
The NCS-500 NC Cut Off Machine is widely used for precision cutting in corrugated board manufacturing lines.
Four-step precision cut-off process for accurate sheet length, servo synchronization, and high-speed corrugated board cutting.
Corrugated board enters the machine smoothly and is aligned for accurate cutting.
Servo control precisely synchronizes the cutting drum with the production line speed.
Straight knife cuts the corrugated board to the required length with ±1 mm accuracy.
Accurately cut sheets are discharged smoothly and transferred to the stacking section.
The NCS-500 is a servo-controlled cutting machine designed for precise length cutting of corrugated boards in continuous production lines.
The machine is capable of cutting at speeds of up to 100 meters per minute.
The NCS-500 supports adjustable cutting lengths ranging from 600 mm to 9999 mm.
The machine provides high cutting precision with an accuracy of ±1 mm, ensuring consistent sheet dimensions.
The machine is equipped with a servo drive and NC controller, offering precise synchronization, easy operation, and reliable performance.
The NCS-500 is available in 1200 mm and 1800 mm working widths to meet different production requirements.
