Paper Loading
Paper reels are loaded onto the machine and accurately aligned for smooth feeding into the cassette system.
Design Speed
200 m/min
Paper Width
1800–2500 mm
Main Flute Roll
Ø360 mm
Preheat Roll
Ø400 mm
Cassette Change
Approx. 10 Minutes
Glue System
Uniform Glue Coating

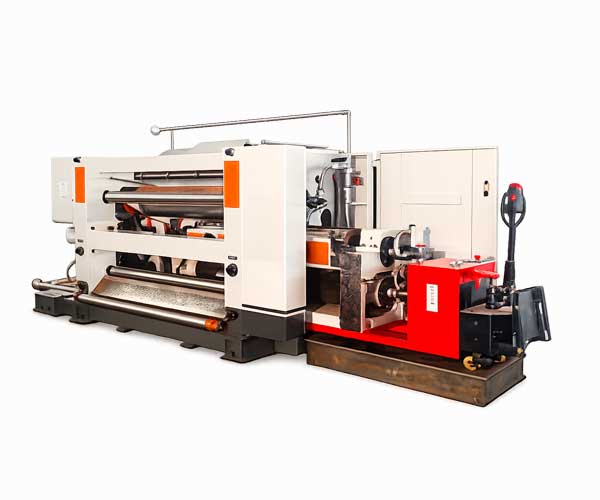

TThe SF-360C is a high-performance cassette-type single facer machine built for continuous corrugated board production. Its quick cassette roll change system minimizes downtime, while precision engineering ensures stable flute formation, uniform pressure, and excellent board quality even at high production speeds.
Delivering Quality Machines Across the Globe
USA
UAE
Saudi Arabia
Australia
France
Canada
South Africa
Brazil
India
Mexico
| Parameter | Specification |
|---|---|
| Model | SF-360C |
| Machine Type | Cassette Type Single Facer Corrugating Machine |
| Design Speed | 200 m/min |
| Corrugating Roll Diameter | 360 mm |
| Working Width | 1800 / 2000 / 2200 / 2500 mm |
| Drive System | Heavy-Duty Motor Drive |
| Pressure Roll Diameter | 385 mm |
| Preheater Roll Diameter | 400 mm |
The SF-360C is ideal for high-speed corrugated board manufacturing and heavy-duty packaging production.
Four-step cassette corrugation process for quick flute change, precise flute formation, and high-speed corrugated board production.
Paper reels are loaded onto the machine and accurately aligned for smooth feeding into the cassette system.
The required flute cassette is selected and installed quickly, reducing downtime during flute profile changes.
Steam-heated flute rolls form accurate corrugations while glue is applied evenly for superior board bonding.
Strong, uniform corrugated board is produced continuously with quick cassette change capability and high production efficiency.
The SF-360C is a high-speed corrugating machine featuring a cassette-type roll change system for efficient production and minimal downtime.
The machine is capable of operating at 200 meters per minute, making it suitable for large-scale corrugated board manufacturing.
The hydraulic cassette system allows corrugating roll replacement in approximately 10 minutes, significantly reducing production interruptions.
The SF-360C is available in 1800 mm, 2000 mm, 2200 mm, and 2500 mm working widths.
The cassette system enables fast roll replacement, reduced maintenance time, improved production efficiency, and quick flute profile changes.
It is widely used in corrugated box manufacturing, packaging plants, paper mills, and high-speed corrugated board production facilities.
We provide end-to-end corrugated packaging solutions from individual machines to turnkey corrugated board plants.
