Paper Feeding
Kraft liner and medium paper enter the pre-heater smoothly for controlled conditioning.
Heating Drum
Ø470 / Ø600 / Ø900 mm
Configuration
Simplex / Duplex / Triplex
Paper Width
1200–2500 mm
Wrap Control
Adjustable Motorized
Moisture Control
Spray System (Optional)
Application
Liner & Medium Paper

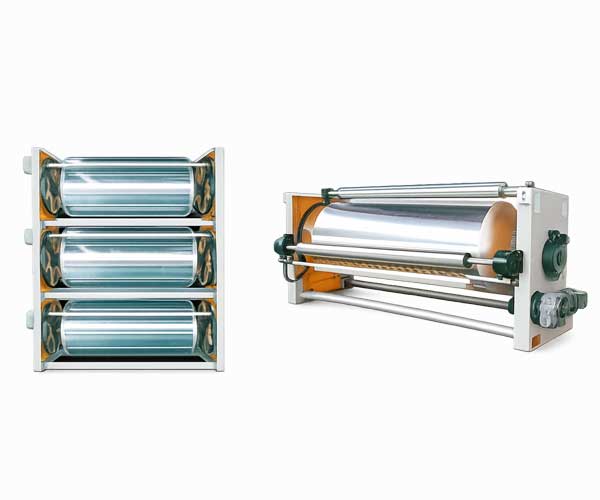

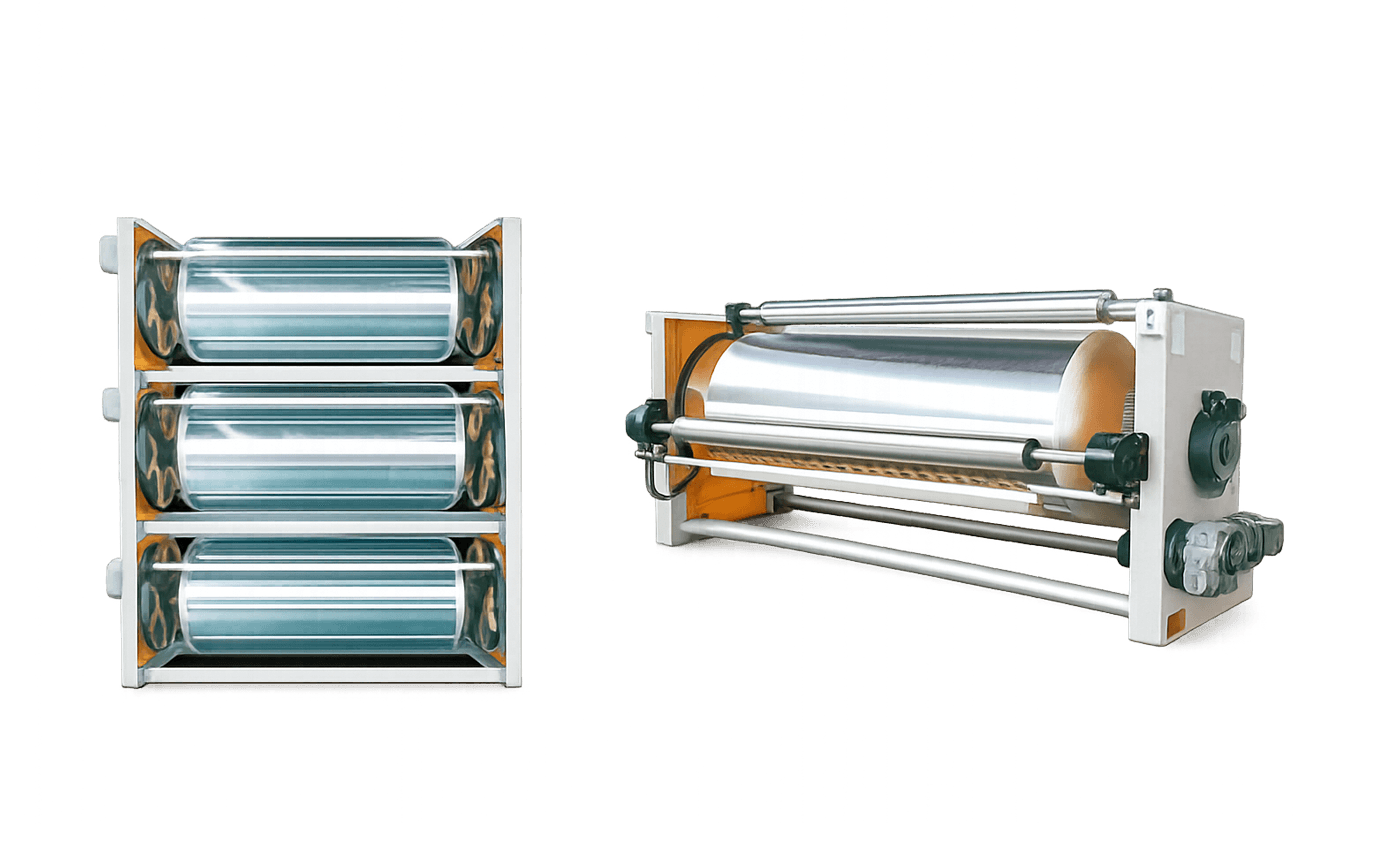

The PH-106 Pre Heater conditions liner and medium paper before it enters the corrugating process. Its precision heating drums and adjustable wrap system ensure uniform heating, controlled moisture, and improved paper flexibility for superior corrugated board production.
Delivering Quality Machines Across the Globe
USA
UAE
Saudi Arabia
Australia
France
Canada
South Africa
Brazil
India
Mexico
| Parameter | Specification |
|---|---|
| Model | PH-106 |
| Machine Type | Paper Pre Heater |
| Configuration | Simplex / Duplex / Triplex |
| Drum Diameter | 470 mm / 600 mm / 900 mm |
| Paper Type | Liner & Corrugating Medium |
| Moisture Control | Optional Spray System |
| Working Width | 1200–2500 mm |
| Web Tension Control | Brake System |
The PH-106 Pre Heater is widely used in corrugated board production lines to condition paper before corrugation.
Four-step preheating process for uniform paper conditioning, moisture control, and efficient corrugated board production.
Kraft liner and medium paper enter the pre-heater smoothly for controlled conditioning.
The adjustable wrap roll controls paper contact with the heated drum for optimum heating.
Steam-heated drums evenly heat the paper and stabilize moisture for improved bonding quality.
Properly conditioned paper is transferred to the next machine for smooth and efficient corrugation.
The PH-106 is a paper preheating machine that prepares liner and medium paper for the corrugation process by improving temperature and moisture balance.
The machine is available in Simplex, Duplex, and Triplex configurations to suit different production capacities.
The PH-106 offers preheating drum diameters of 470 mm, 600 mm, and 900 mm.
The adjustable wrap roll controls the paper contact angle with the heated drum, ensuring optimal heating for different production speeds.
Yes. An optional spray system is available to adjust the paper's moisture content for improved corrugation quality..
The machine is available in working widths ranging from 1200 mm to 2500 mm.
We provide end-to-end corrugated packaging solutions from individual machines to turnkey corrugated board plants.
