Sheet Collection
Finished corrugated sheets are received from the conveyor and guided to the stacking section.
Stacker Type
Semi Automatic
Working Width
1400–2500 mm
Stack Height
1500 mm
Lift System
Photoelectric Control
Control Mode
Electric Up & Down
Operation
Vertical Auto Stacking

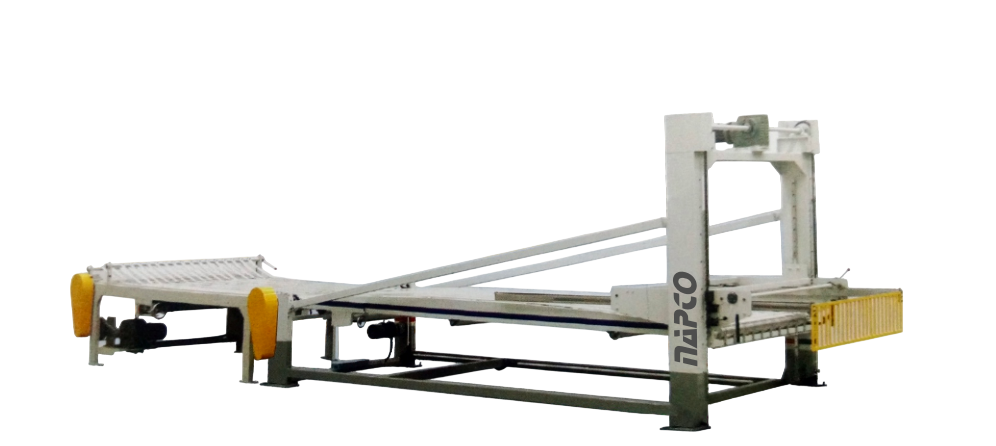

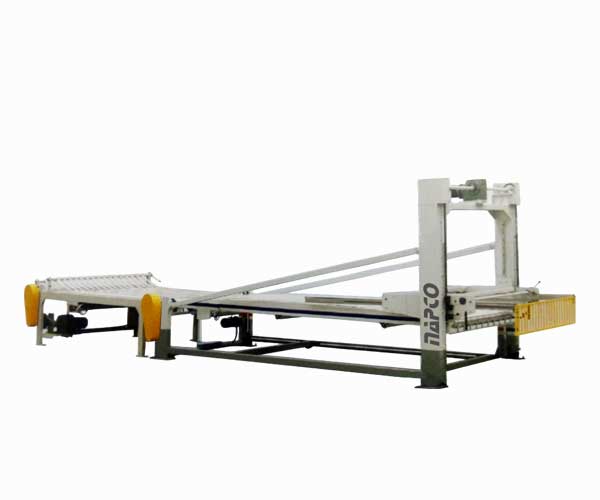

The STS-107 Semi Automatic Down Stacker is designed to automatically collect and stack corrugated sheets after the production process. The machine consists of three main sections: Conveyor No.1, Conveyor No.2, and the Collection Device, ensuring smooth sheet transfer and organized stacking.
Delivering Quality Machines Across the Globe
USA
UAE
Saudi Arabia
Australia
France
Canada
South Africa
Brazil
India
Mexico
| Parameter | Specification |
|---|---|
| Model | STS-107 |
| Machine Type | Semi Automatic Down Stacker |
| Conveyor Sections | 3 (Conveyor No.1, Conveyor No.2 & Collection Device) |
| Stack Height | 1500 mm |
| Available Width | 1400–2500 mm |
| Lifting Mechanism | Automatic |
| Sensor Type | Photoelectric Sensor |
| Operation | Semi Automatic |
Reliable Sheet Collection & Semi-Automatic Stacking Solutions The STS-107 Semi Automatic Down Stacker is widely used in:
Four-step stacking process for smooth sheet collection, automatic lifting, and accurate bundle formation.
Finished corrugated sheets are received from the conveyor and guided to the stacking section.
Photoelectric sensors control the lifting system to maintain the correct stacking level automatically.
Sheets are stacked vertically with balanced height for neat, stable, and uniform bundles.
Completed sheet bundles are discharged safely, ready for packing or the next production stage.
The machine automatically collects and stacks corrugated sheets at the end of the production line, reducing manual handling and improving workflow efficiency.
The STS-107 supports a maximum stack height of 1500 mm.
The lifting system uses photoelectric sensors to monitor the stack height and automatically adjust the conveyor level for consistent stacking.
The machine is available for sheet widths ranging from 1400 mm to 2500 mm.
Yes. Its heavy-duty construction and automatic height adjustment system make it ideal for continuous, high-speed corrugated board production.
The STS-107 is widely used in corrugated board manufacturing plants, carton box factories, packaging industries, paper converting units, and automatic corrugation lines.
